LHS V6-3.5L VIN F (1995)

Page 1
background image

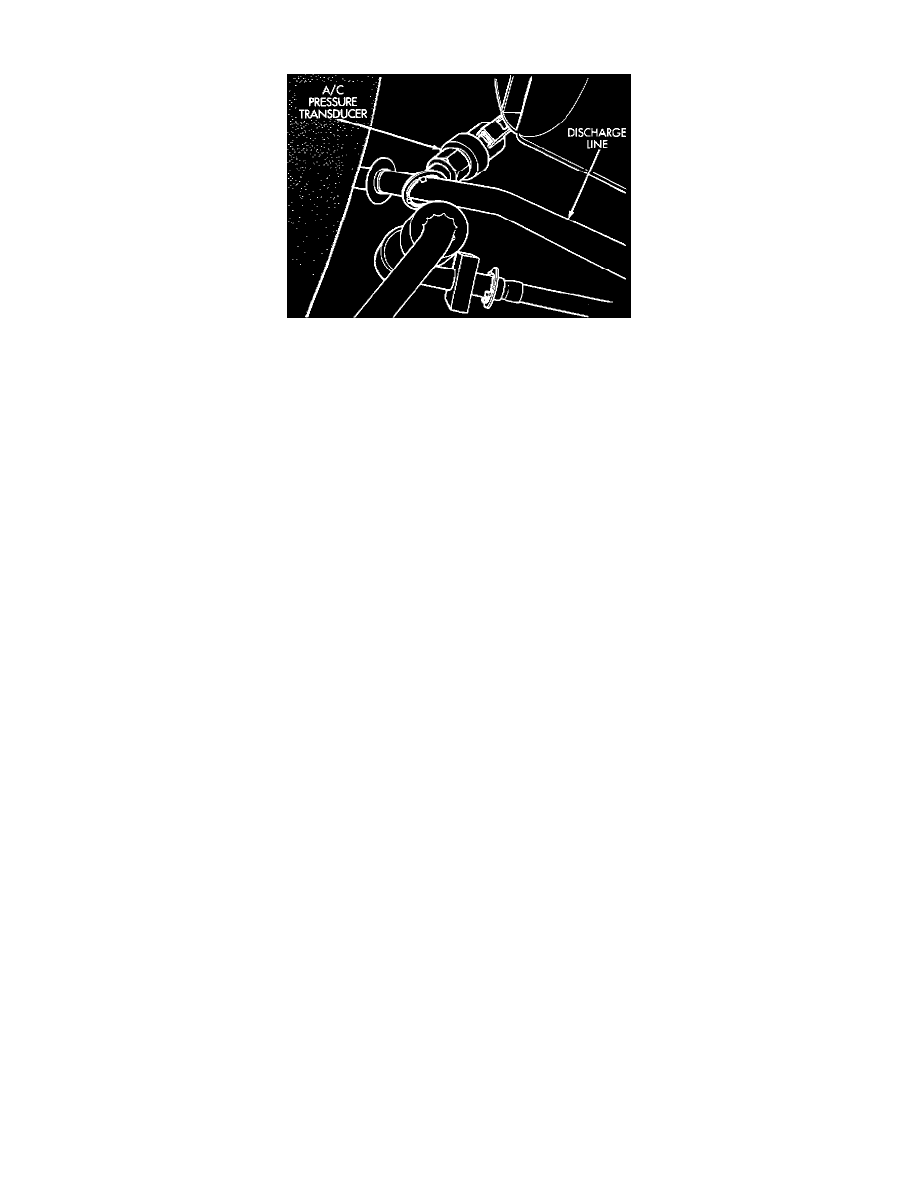

Refrigerant Pressure Sensor / Switch: Locations

A/C Pressure Transducer

The Air Conditioning Pressure Transducer is mounted on the discharge tube.
