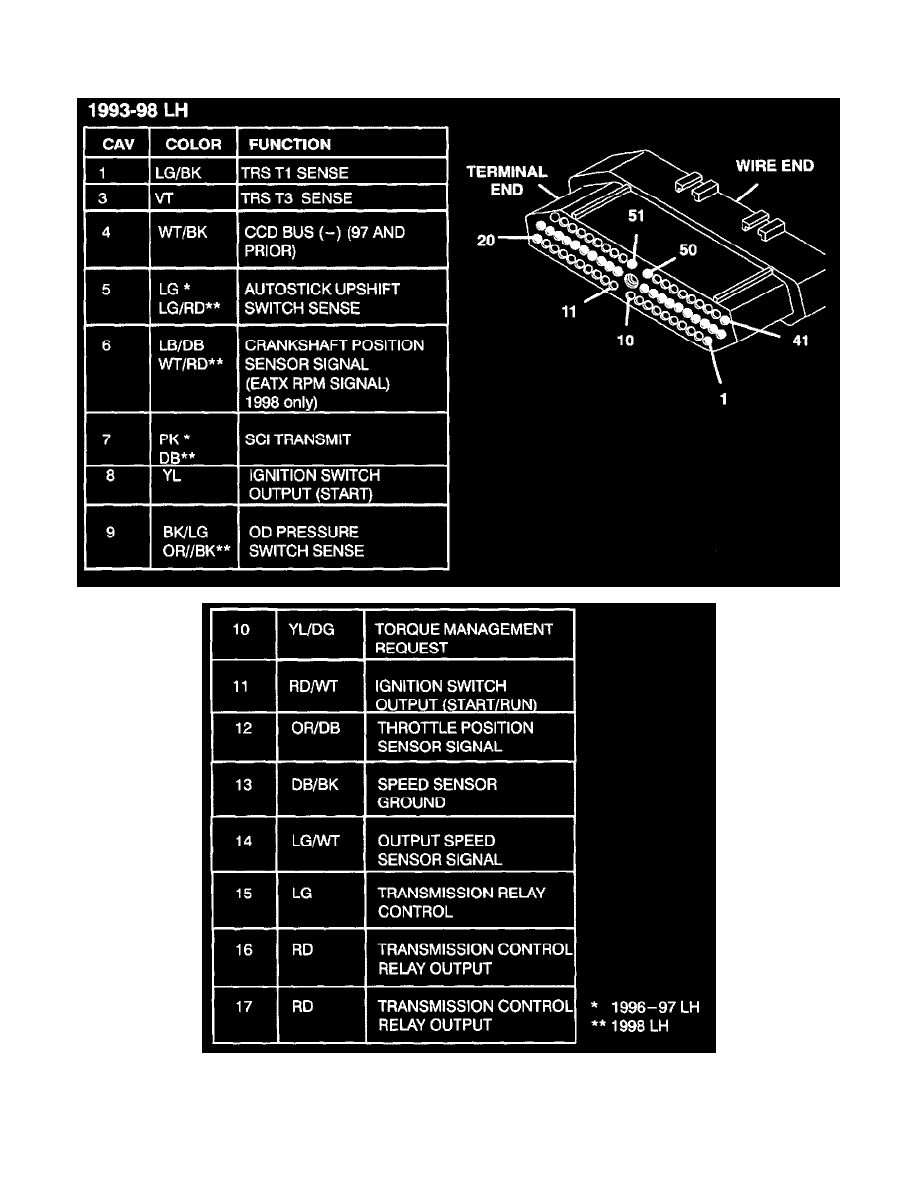

Control Module: Diagrams
Transmission Control Module

Transmission and Drivetrain
Automatic Transmission/Transaxle
Control Module, A/T / Component Information
Diagrams
Transmission Control Module
