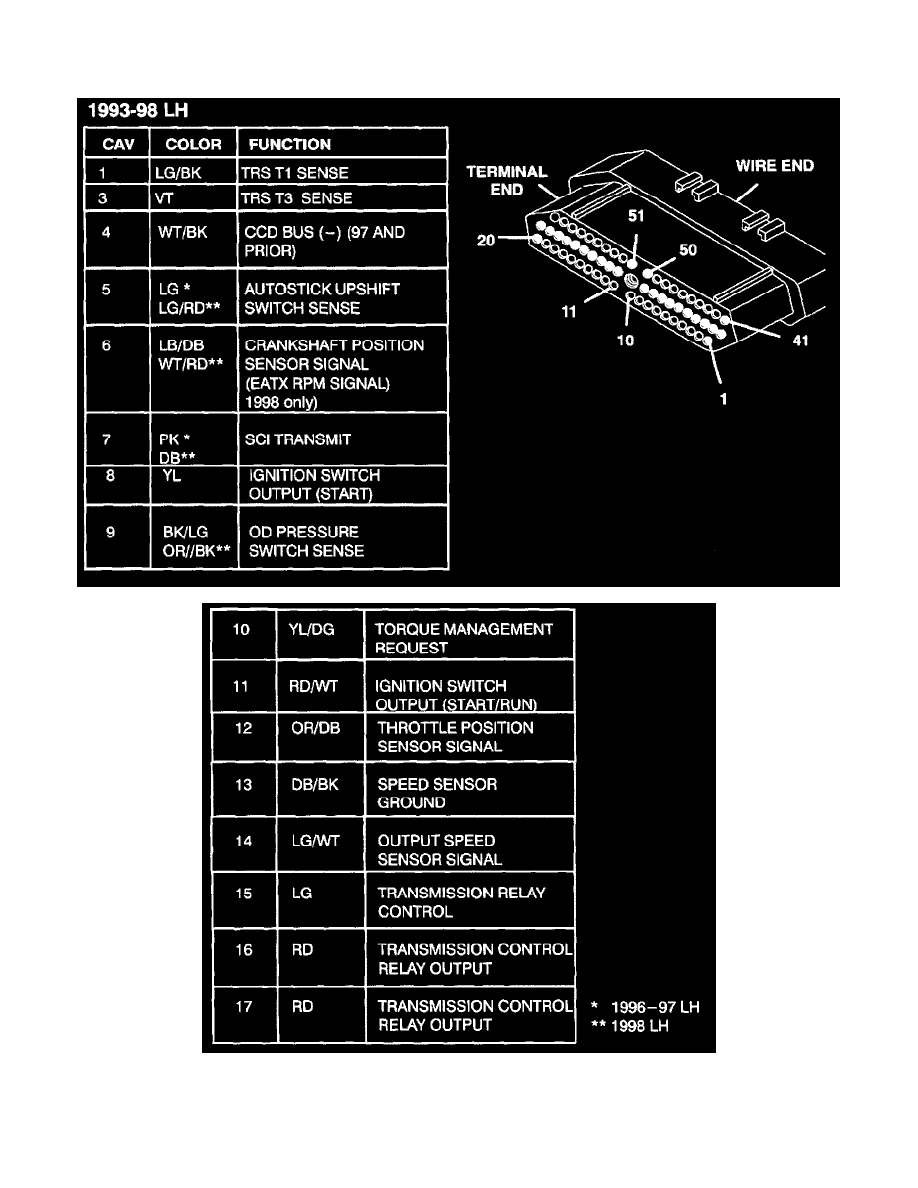

Control Module: Diagrams
Transmission Control Module

Transmission and Drivetrain
Relays and Modules - Transmission and Drivetrain / Relays and Modules - A/T / Control Module, A/T / Component Information
Diagrams
Transmission Control Module
