Pacifica V6-3.8L (2008)
Towing Information: Service and Repair
Towing
STANDARD PROCEDURE - TOWING
WARNINGS AND CAUTIONS
WARNING: Do not allow towing attachment devices to contact the fuel tank or lines, fuel leak can result.
Do not lift or tow vehicle by front or rear bumper.
Do not go under a lifted vehicle if not supported properly on safety stands.
Do not allow passengers to ride in a towed vehicle.
Use a safety chain that is independent from the towing attachment device.
CAUTION: Do not damage brake lines, exhaust system, shock absorbers, sway bars, or any other under vehicle components when attaching
towing device to vehicle.
Do not secure vehicle to towing device by the use of front or rear suspension or steering components.
Remove or secure loose or protruding objects from a damaged vehicle before towing.
Refer to state and local rules and regulations before towing a vehicle.
Do not allow weight of towed vehicle to bear on lower fascia, air dams, or spoilers.

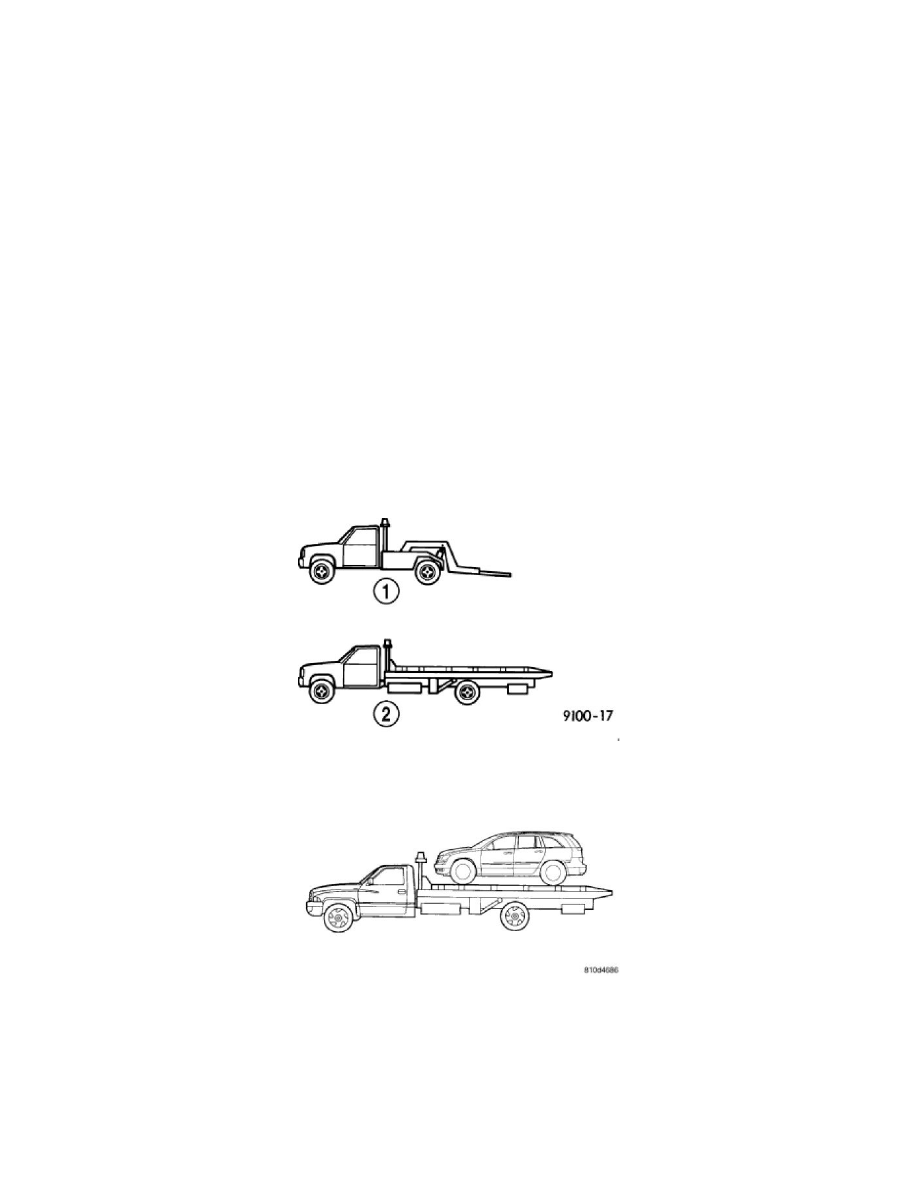

RECOMMENDED TOWING EQUIPMENT
FWD vehicles, use of a flat bed towing device or a wheel lift is recommended.
AWD vehicles, a flat bed towing device is recommended.
When using a wheel lift towing device, be sure the disabled vehicle has at least 100 mm (4 in.) ground clearance. If minimum ground clearance cannot be
reached, use a towing dolly. If a flat bed device is used, the approach angle should not exceed 15 degrees.
CAUTION:
-
Do not attempt to tow this vehicle from the front with sling type towing equipment. Damage to the front fascia and air dams will result.
-
The only approved method of towing is with a flat bed truck.
-
Do not tow the vehicle from the rear. Damage to the rear sheet metal, liftgate and fascia will occur.
