Accessories and Optional Equipment|Antenna > < Seat Sensor/Switch|Locations|Page 6285

Pacifica V6-3.8L VIN L (2005)

  • Accessories and Optional Equipment
  • Accessory Delay Module
  • Accessory Delay Relay
  • Component Information
  • Locations

Page 1
background image

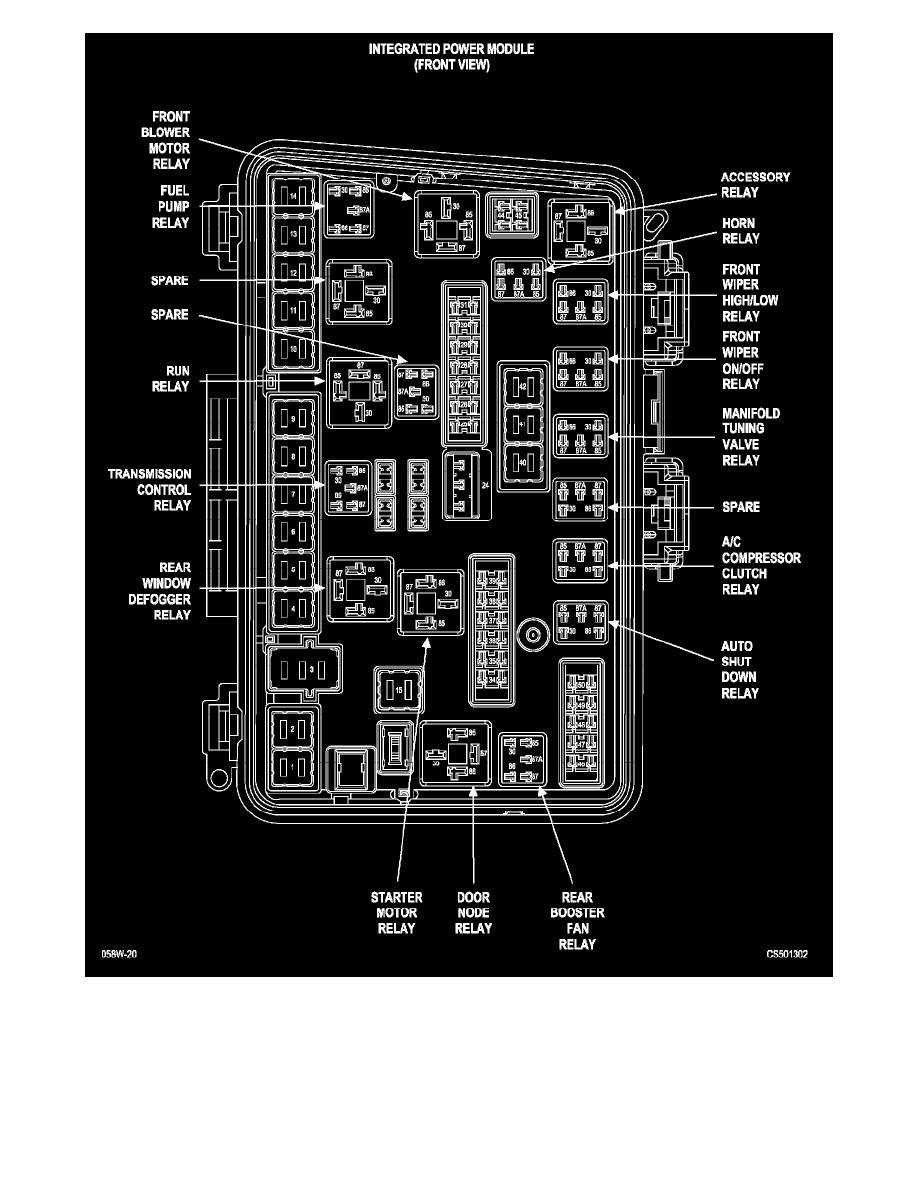

Integrated Power Module (Front View)
