Pacifica V6-3.8L VIN L (2005)
Front Bumper Cover / Fascia: Service and Repair
Front Fascia
FRONT FASCIA
REMOVAL
1. Release hood latch and open hood.
2. Remove the headlamp assemblies.
3. Hoist vehicle and support with safety stands, as necessary.

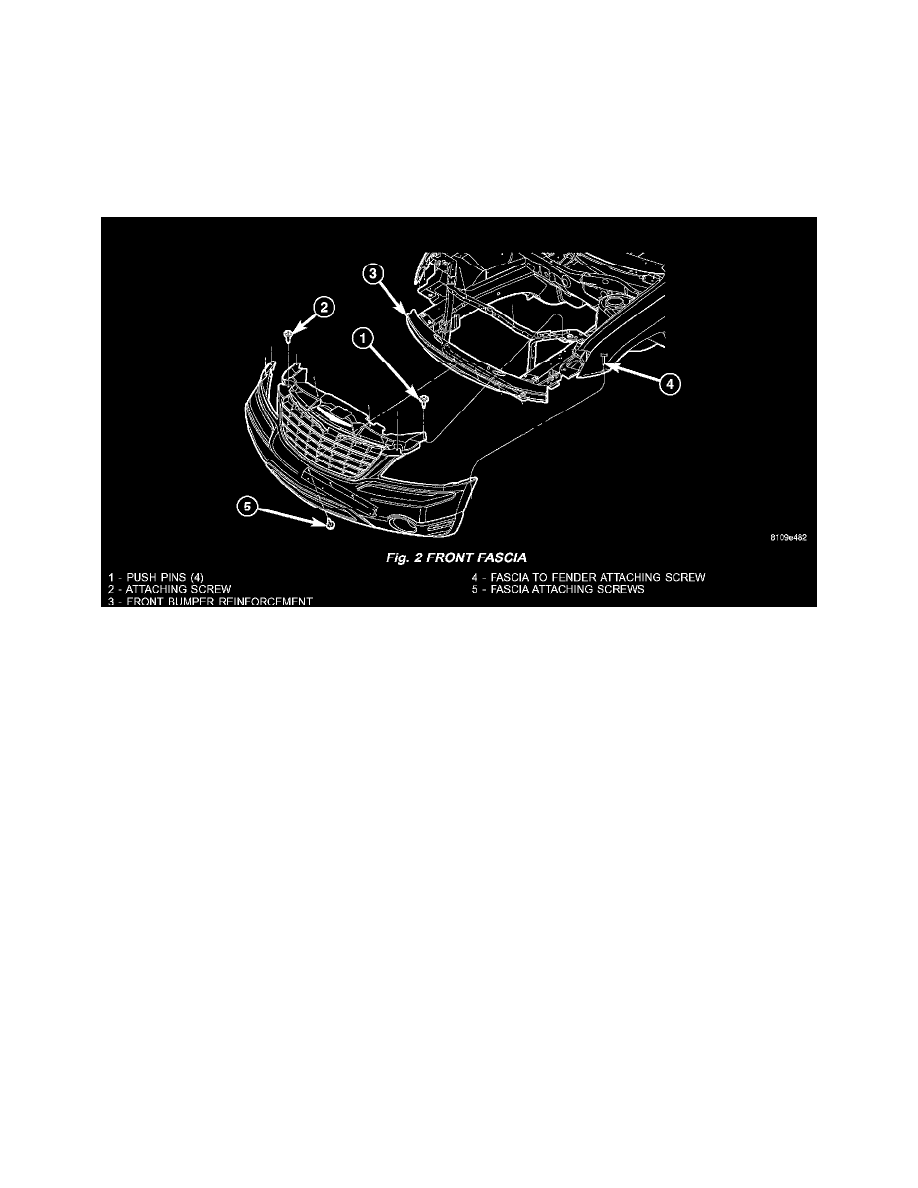

Fig. 2
4. Remove the four screws attaching bottom of fascia/air dam to radiator closure panel (Fig. 2).
NOTE: The whole front splash shield does not need to be removed.
5. Remove three screws attaching front fascia to front splash shield on each side.
6. Remove the screw attaching fascia to the front fenders on each side.
7. Disconnect fog lamp wire connectors, if necessary.
8. Lower vehicle.
9. Remove push pins attaching the upper appearance panel to upper crossmember.
10. Remove screw attaching the upper grille support to the headlamp mounting panel at each side of the grille.
11. Remove bumper fascia from vehicle.
