Pacifica V6-3.8L VIN L (2005)
Front Door Weatherstrip: Service and Repair
Front Door Mounted Weatherstrip
FRONT DOOR MOUNTED WEATHERSTRIP
REMOVAL
1. Open front door.

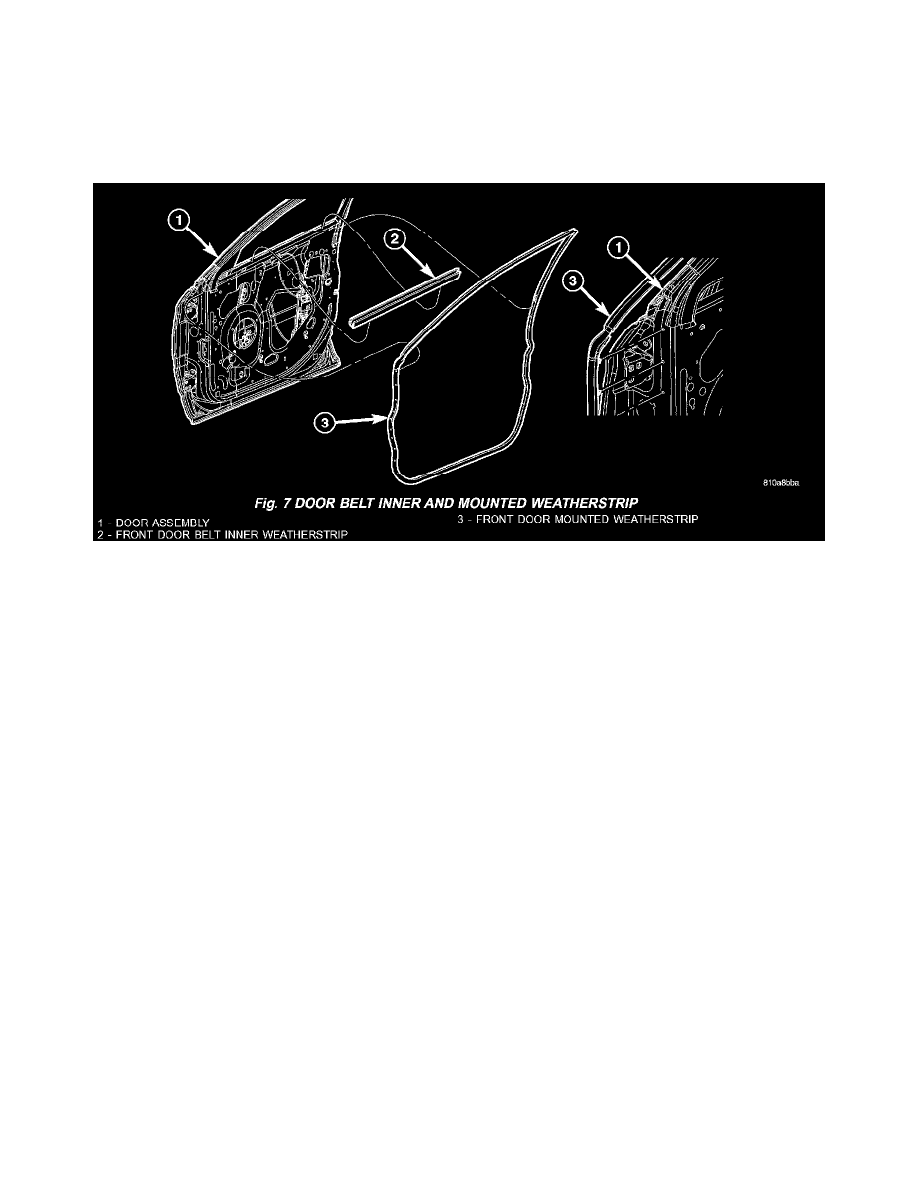

Fig. 7
2. Using a trim stick C-4755 or equivalent, disengage the push pins attaching front door mounted weatherstrip to door frame (Fig. 7).
3. Remove weatherstrip from door frame.
INSTALLATION
1. Place front door mounted weatherstrip into position (Fig. 7).
2. Press on attaching push pins fasteners to attach weatherstrip to lower door and engage upper front door mounted weatherstrip to door frame.
3. Close front door.
