Pacifica V6-3.8L VIN L (2005)
7.

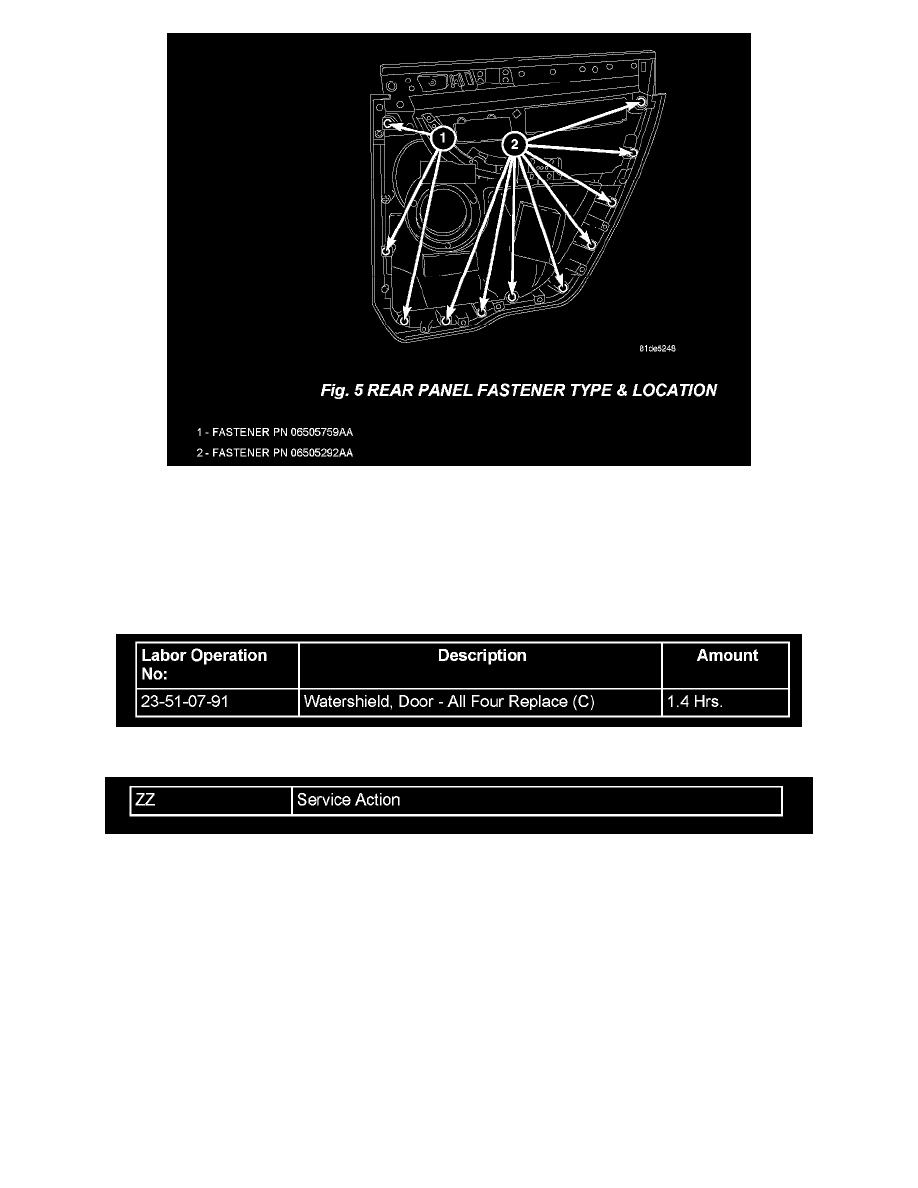

Inspect the door panel and fastener locations for damage. If any are damaged replace as required. Make sure the correct fastener is positioned in
the proper locations as shown in (Fig. 4 ) and (Fig. 5)
8.
Reinstall the door panels following the procedures outlined in DealerCONNECT > TechCONNECT. Make sure the panels are securely and fully
installed (fasteners fully seated).
POLICY:
Reimbursable within the provisions of the warranty.
TIME ALLOWANCE:
FAILURE CODE:
Disclaimer:
This bulletin is supplied as technical information only and is not an authorization for repair.
Technical Service Bulletin # 23-029-07
Date:
070717
Interior - Rattle/Buzz From Doors With Audio ON
NUMBER: 23-029-07
GROUP: Body
DATE: July 17, 2007
SUBJECT:
Radio Speaker Misdiagnosis - Rattle/Buzz Sounds in Door
