Pacifica V6-3.8L VIN L (2005)
![background image](/chrysler/pacifica/v6-3.8l_vin_l/Page-2061001.png)
Hood Hinge: Service and Repair
HINGE
REMOVAL
1. Support hood on the side that requires hinge replacement.
2. Remove cowl plenum grille.
3. Mark all bolt and hinge attachment locations with a grease pencil or other suitable device to provide reference marks for installation.

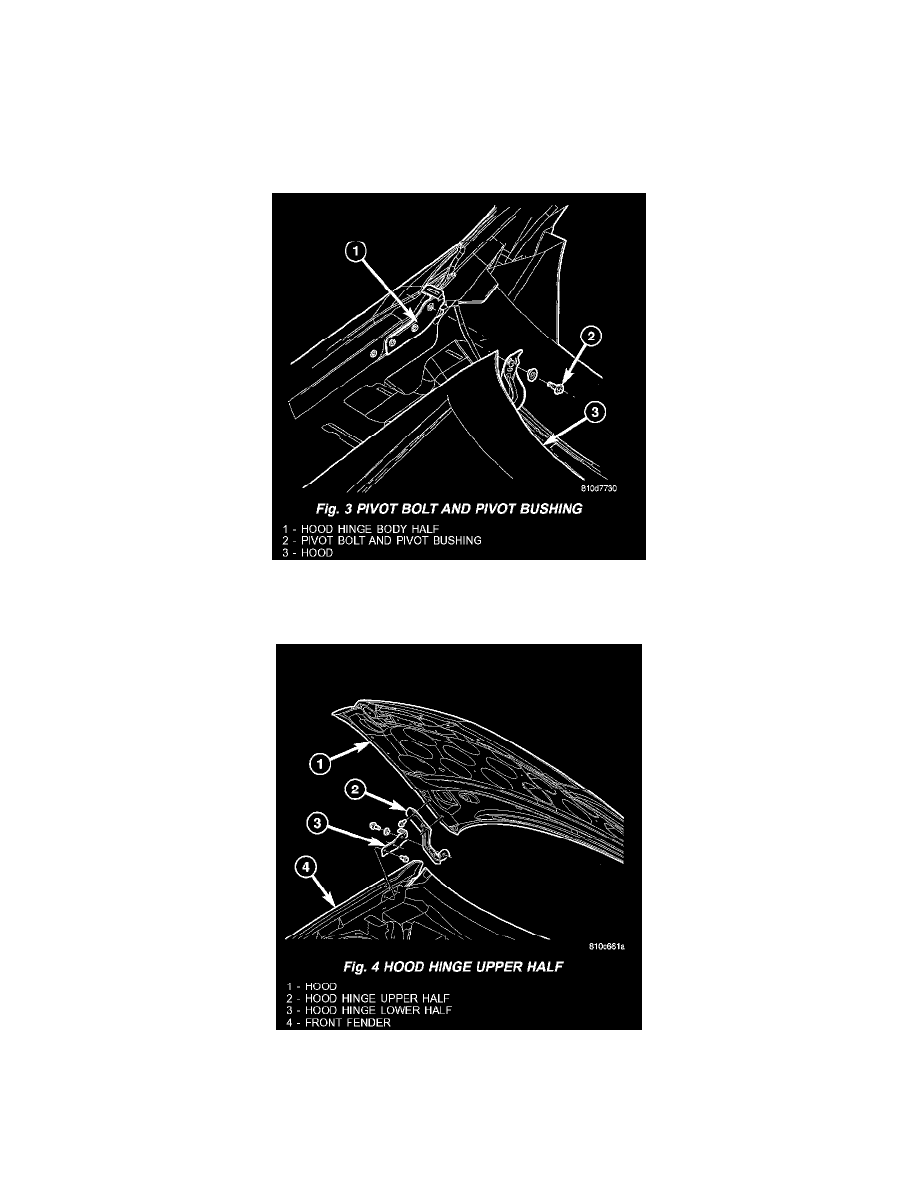

Fig. 3
4. Remove pivot bolt and pivot bushing (Fig. 3).
Fig. 4
