Pacifica V6-3.8L VIN L (2005)
![background image](/chrysler/pacifica/v6-3.8l_vin_l/Page-2122001.png)
Rear Fender Liner: Service and Repair
REAR WHEELHOUSE SPLASH SHIELD
REMOVAL
1. Hoist and support vehicle on safety stands, as necessary.
2. Remove rear wheel.

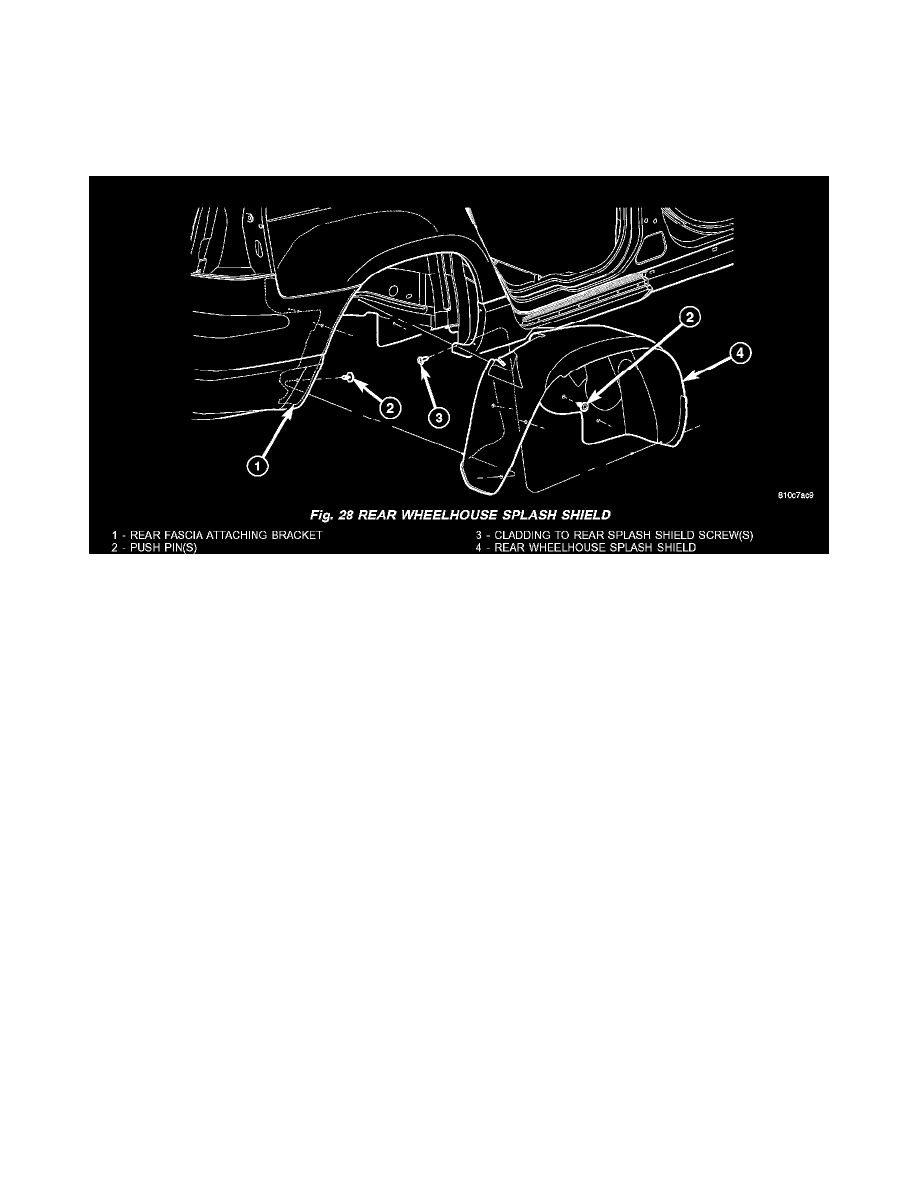

Fig. 28
3. Remove screw attaching rear wheelhouse splash shield to cladding (Fig. 28).
4. Remove four push pin fasteners attaching splash shield to inner wheelhouse.
5. Remove two push pin fasteners attaching rear splash shield to rear fascia aperture bracket.
6. Remove splash shield from vehicle.
INSTALLATION
1. Place splash shield into position.
2. Install four new push pin fasteners attaching splash shield to inner wheelhouse (Fig. 28).
3. Install two new push pin fasteners attaching rear splash shield to rear fascia aperture bracket.
4. Install screw attaching rear wheelhouse splash shield to cladding.
5. Install rear wheel.
6. Remove safety stands and lower vehicle.
