Pacifica V6-3.8L VIN L (2005)
Headliner: Removal and Replacement
HEADLINER
REMOVAL
1. Disconnect and isolate the negative battery cable.
2. Remove sun visors and vanity mirrors.
3. Remove sun visor center supports.
4. Remove assist handles attaching screws and remove, if equipped.
5. Remove second row dome lamp and coat hook attaching screw and remove, if equipped.
6. Remove A-pillar trim. Refer to Trim Panel.
7. Remove B-pillar upper trim. Refer to Trim Panel.
8. Remove liftgate header trim. Refer to Trim Panel.
9. Remove D-pillar trim. Refer to Trim Panel.
10. Remove C-pillar upper trim, as necessary. Refer to Trim Panel.
11. Remove overhead console, if equipped.
12. Remove overhead DVD video screen, if equipped.

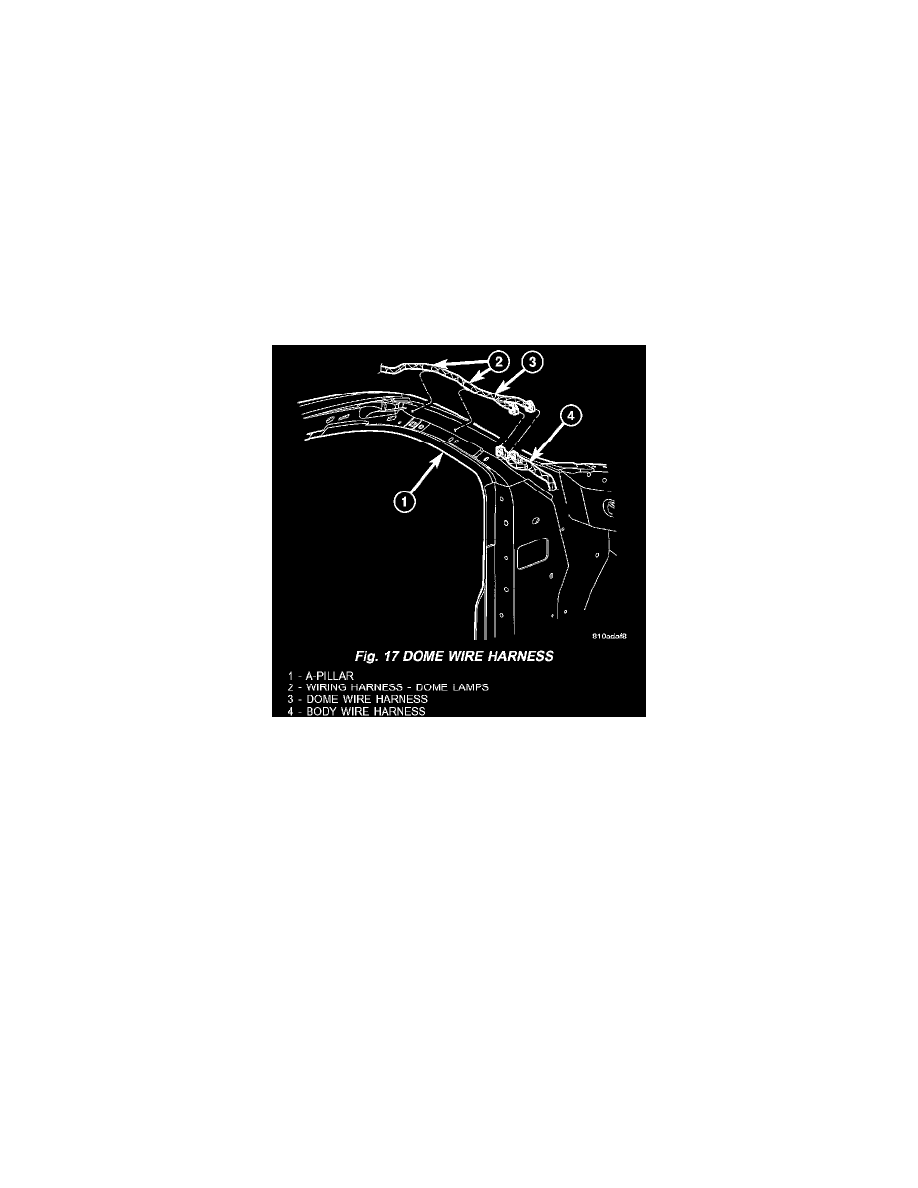

Fig. 17
13. Disconnect wire harness connectors at the left A-pillar (Fig. 17).
