Pacifica V6-3.8L VIN L (2005)
Trim Panel: Service and Repair
Cowl Trim
COWL SIDE TRIM PANEL
REMOVAL
1. Remove instrument panel side cover.
2. Remove front door sill scuff plate. Refer to Trim Panel.

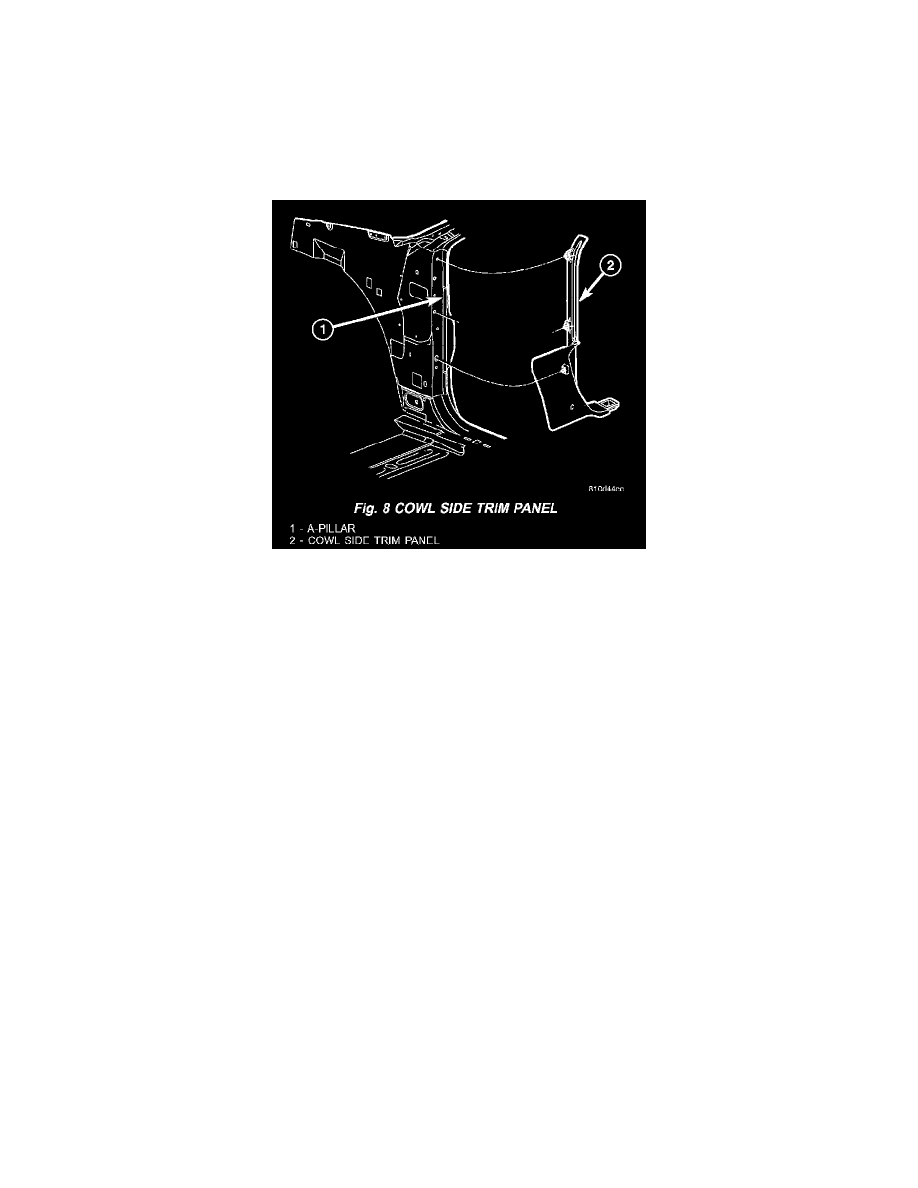

Fig. 8
3. Remove A-pillar cowl side trim panel from vehicle by disengaging hidden clips (Fig. 8).
INSTALLATION
1. Place a-pillar cowl side trim panel in position (Fig. 8).
2. Press on A-pillar trim to engage locking clips.
3. Install front door sill scuff plate.
