Luggage Rack: Service and Repair
Luggage Rack
LUGGAGE RACK
REMOVAL
CAUTION: The luggage rack has to be removed before the cross bars can be remove.

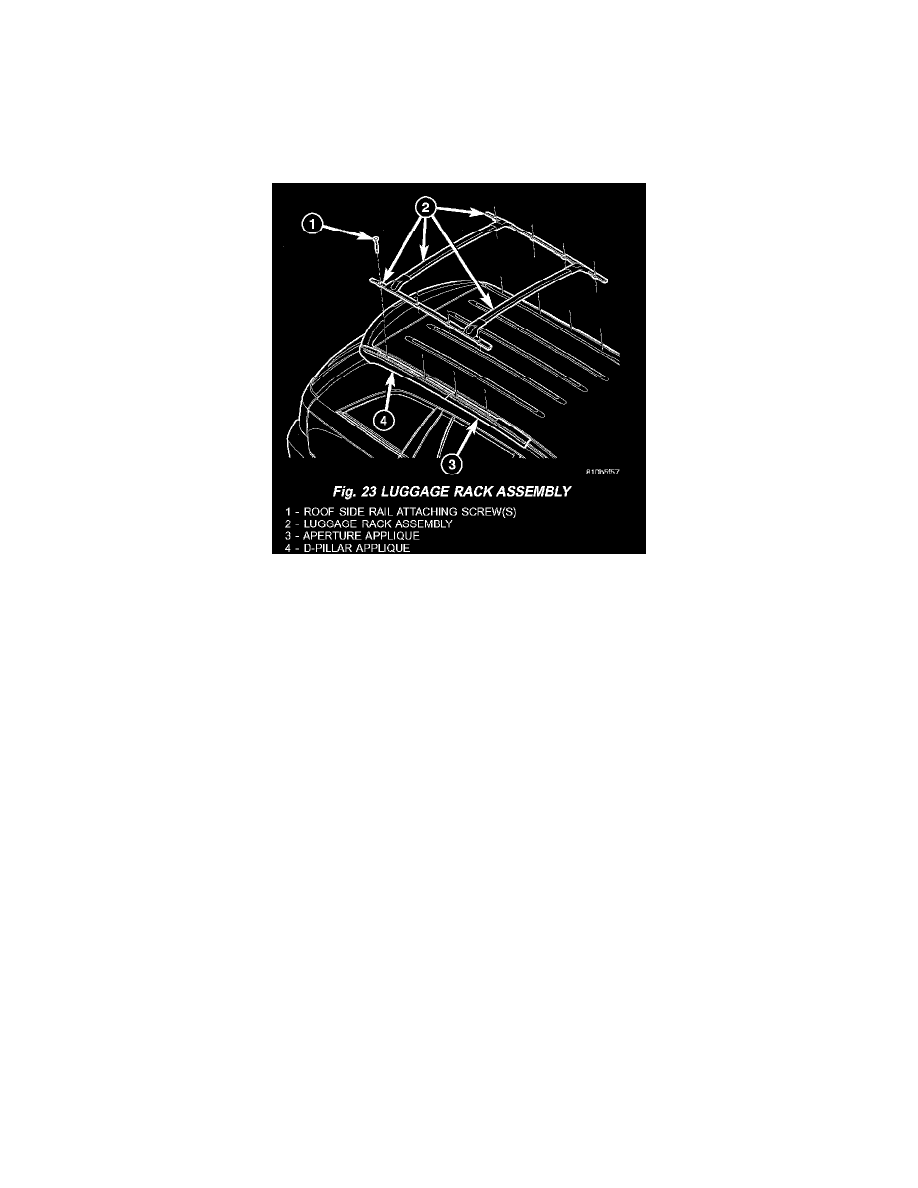

Fig. 23
1. Remove screws attaching side rails (Fig. 23).
2. Remove luggage rack assembly from vehicle.
3. Depress crossbar lever down on each side of crossbar to unlock.
4. Remove crossbar(s) from side rails by sliding bar off the front of the side rails.
INSTALLATION
NOTE: Cross bars must be install onto the side rails before installing rails.
1. Place side rails in position on a clean flat surface. Starting at front end of side rails slide crossbars onto side rails.
2. Place crossbars into position on side rails and press the lower edge of the cross bar lever to lock it into position on each side.
3. Place luggage rack assembly into position on vehicle (Fig. 23).
NOTE: To ensure proper sealing of the threads, new screws should be used.
