Pacifica V6-3.8L VIN L (2005)

Page 1
background image

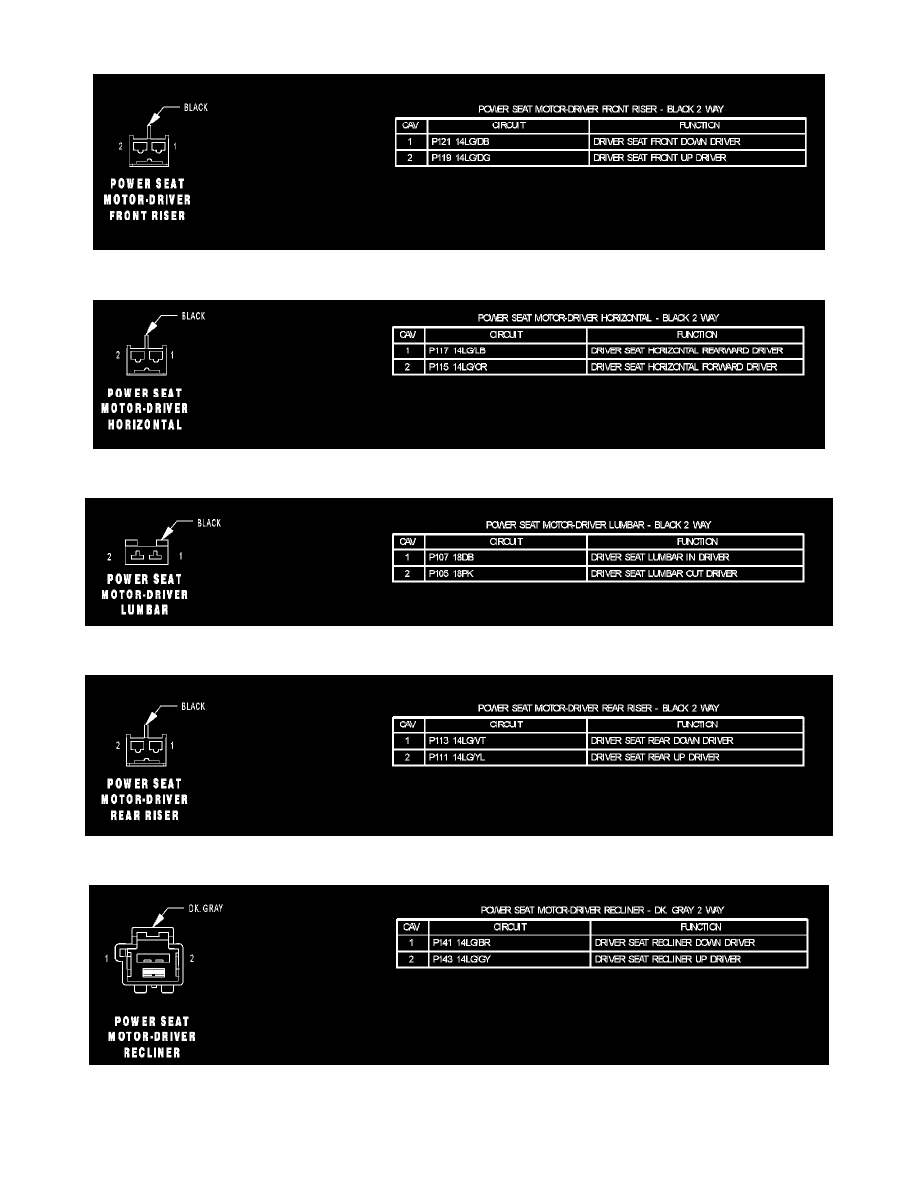

Power Seat Motor: Diagrams

Power Seat Motor - Driver Front Riser

Power Seat Motor - Driver Horizontal

Power Seat Motor - Driver Lumbar

Power Seat Motor - Driver Rear Riser

Power Seat Motor - Driver Recliner
