Pacifica V6-3.8L VIN L (2005)
Power Seat Switch: Testing and Inspection
Driver Seat Switch
1. Remove the driver seat switch assembly.
2. Using an ohmmeter, check the appropriate ground circuit cavity of the driver seat switch connector for continuity to ground. It should be present,
If OK go to Step 3 , If NOT OK repair the open ground circuit as required.
3. Using an voltmeter, check the appropriate 12v circuit cavity of the power seat switch connector for approx. 12v. It should be present, If OK go to
Step 4 , If NOT OK repair the open voltage supply circuit as required.

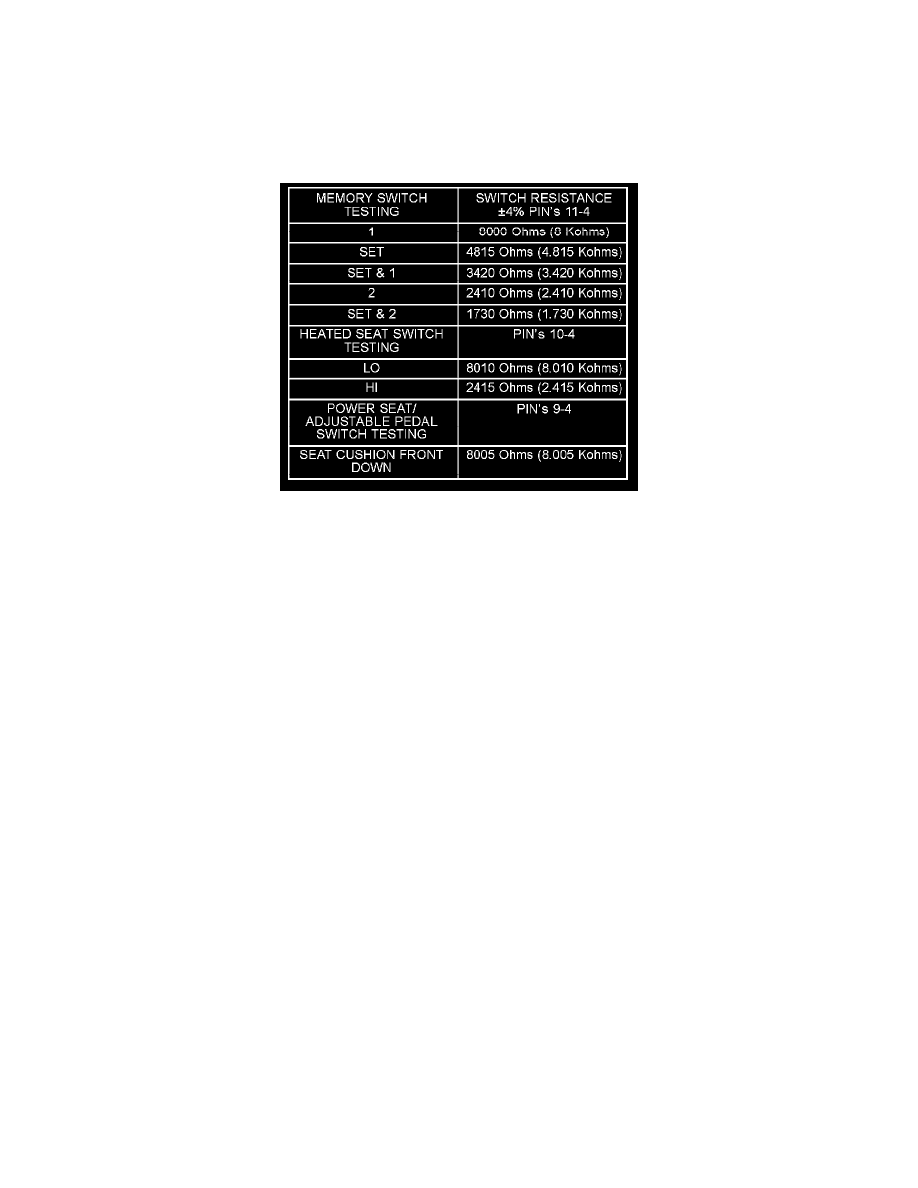

Driver Seat Switch Testing Part 1
