Pacifica V6-3.8L VIN L (2005)
Brake Caliper: Service and Repair
Front
Brake Caliper
DISC BRAKE CALIPER - FRONT
REMOVAL
NOTE: Before proceeding, Refer to Service Precautions.
1) Disconnect and isolate battery negative cable from battery post.

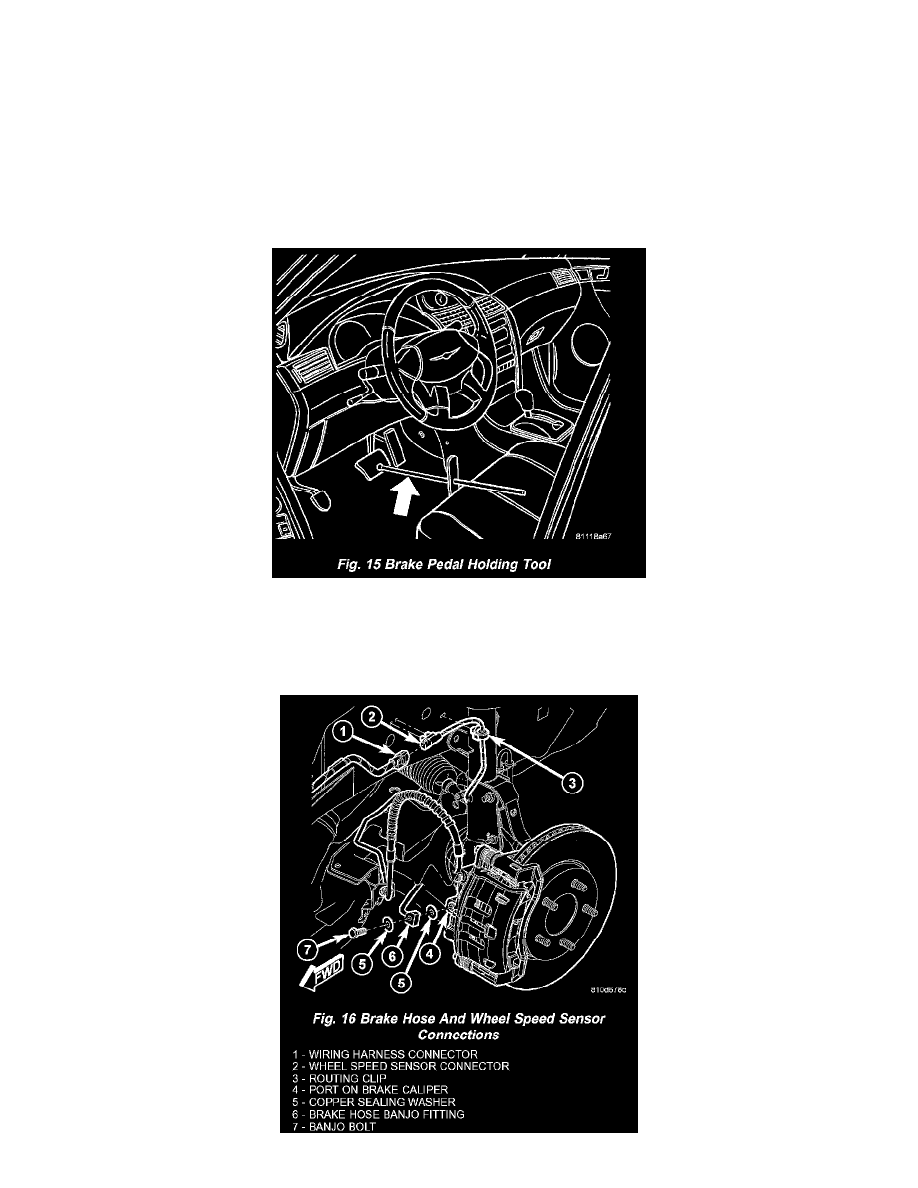

2) Using a brake pedal holding tool as shown (Fig. 15), depress brake pedal past its first inch of travel and hold it in this position. Holding pedal in
this position will isolate master cylinder from hydraulic brake system and will not allow brake fluid to drain out of brake fluid reservoir while
brake lines are open.
3) Raise and support vehicle.
4) Remove tire and wheel assembly.
