Pacifica V6-3.8L VIN L (2005)
Coolant Line/Hose: Service and Repair
Water Pump Inlet Tube
WATER PUMP INLET TUBE
REMOVAL
3.8L ENGINE
1) Drain the cooling system.
2) Raise vehicle on hoist and remove the belt splash shield.

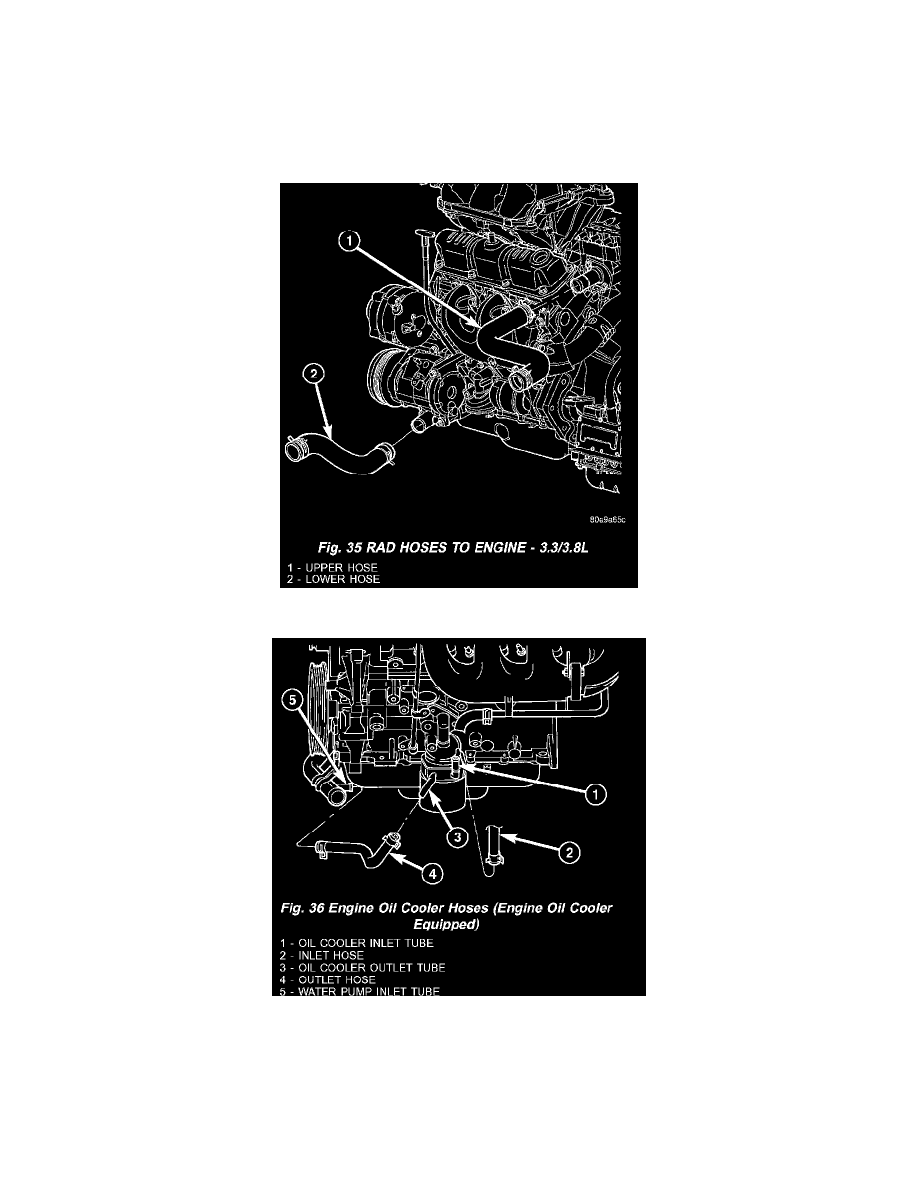

3) Remove the radiator lower hose from inlet tube (Fig. 35).
4) Remove the oil cooler outlet/heater return hose from inlet tube (only if equipped with engine oil cooler) (Fig. 36).
