Pacifica V6-3.8L VIN L (2005)

Page 1
background image

Thermostat: Service and Repair

ENGINE COOLANT THERMOSTAT
REMOVAL
3.8L ENGINE

1) Drain cooling system down below the thermostat level.

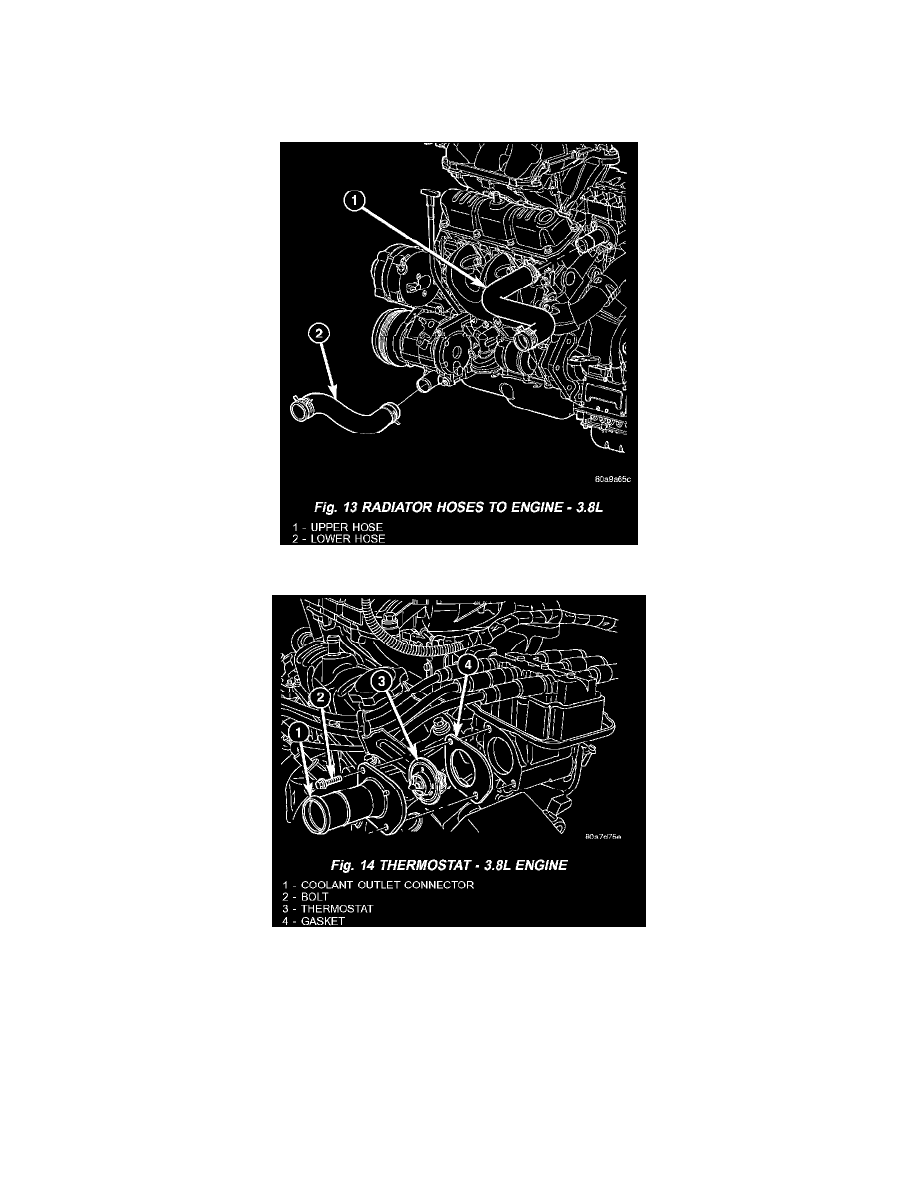

2) Remove radiator upper hose from coolant outlet connector (Fig. 13).

3) Remove coolant outlet connector bolts and connector (Fig. 14).
4) Remove thermostat from outlet connector.
5) Discard gasket and clean both gasket sealing surfaces.

INSTALLATION
3.8L ENGINE
