Pacifica V6-3.8L VIN L (2005)
![background image](/chrysler/pacifica/v6-3.8l_vin_l/Page-558001.png)
Lifter / Lash Adjuster: Description and Operation
HYDRAULIC LIFTERS (CAM IN BLOCK)
DESCRIPTION

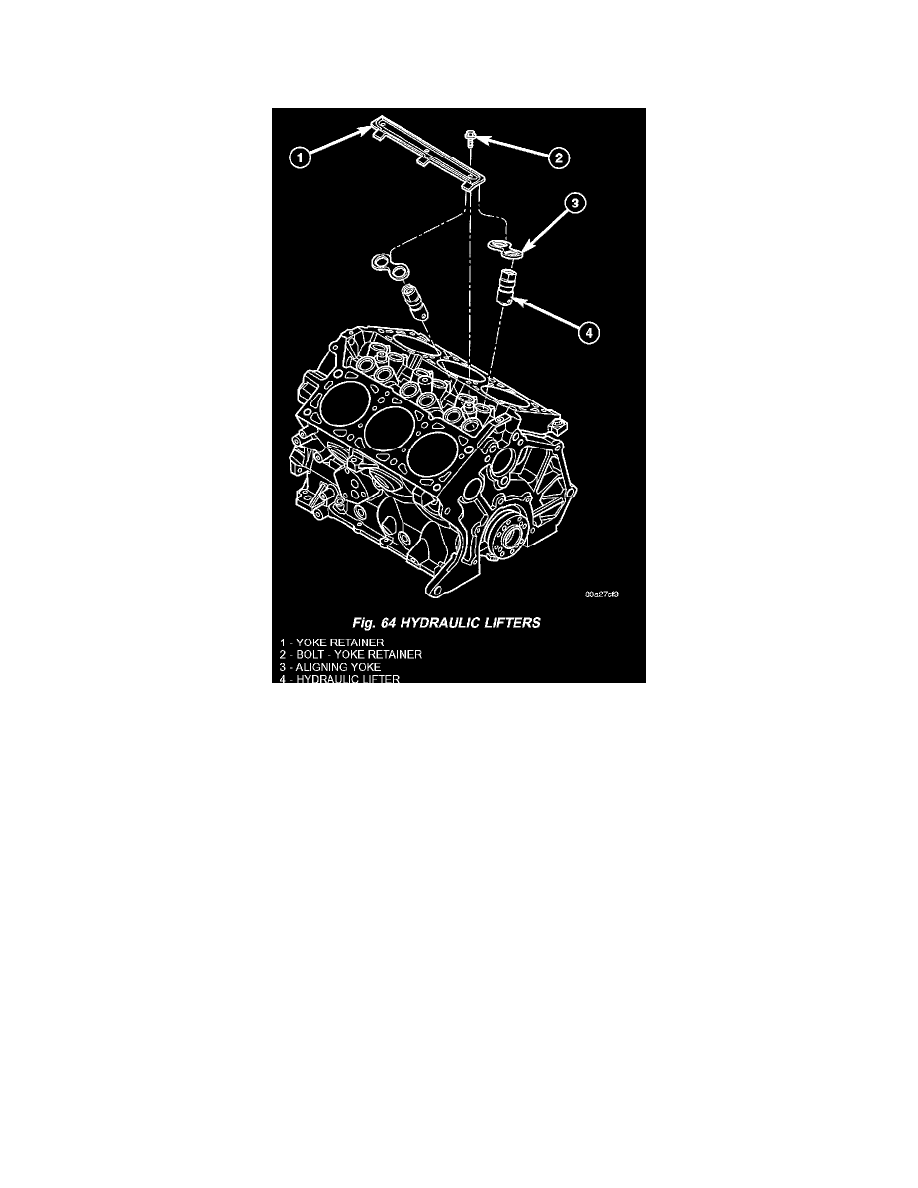

The hydraulic lifters are a roller type design and are positioned in the cylinder block with the lubrication whole facing upward. The lifters are aligned
and retained by a yoke and a retainer (Fig. 64).
Lifter alignment is maintained by machined flats on lifter body Lifters are fitted in pairs into six aligning yokes. The aligning yokes are secured by a
yoke retainer (Fig. 64).
