Pacifica V6-3.8L VIN L (2005)
Oil Filter Adapter: Service and Repair
OIL FILTER ADAPTER
REMOVAL
1) Raise vehicle on hoist.
2) Remove the oil filter.
3) Disconnect oil pressure switch electrical connector.

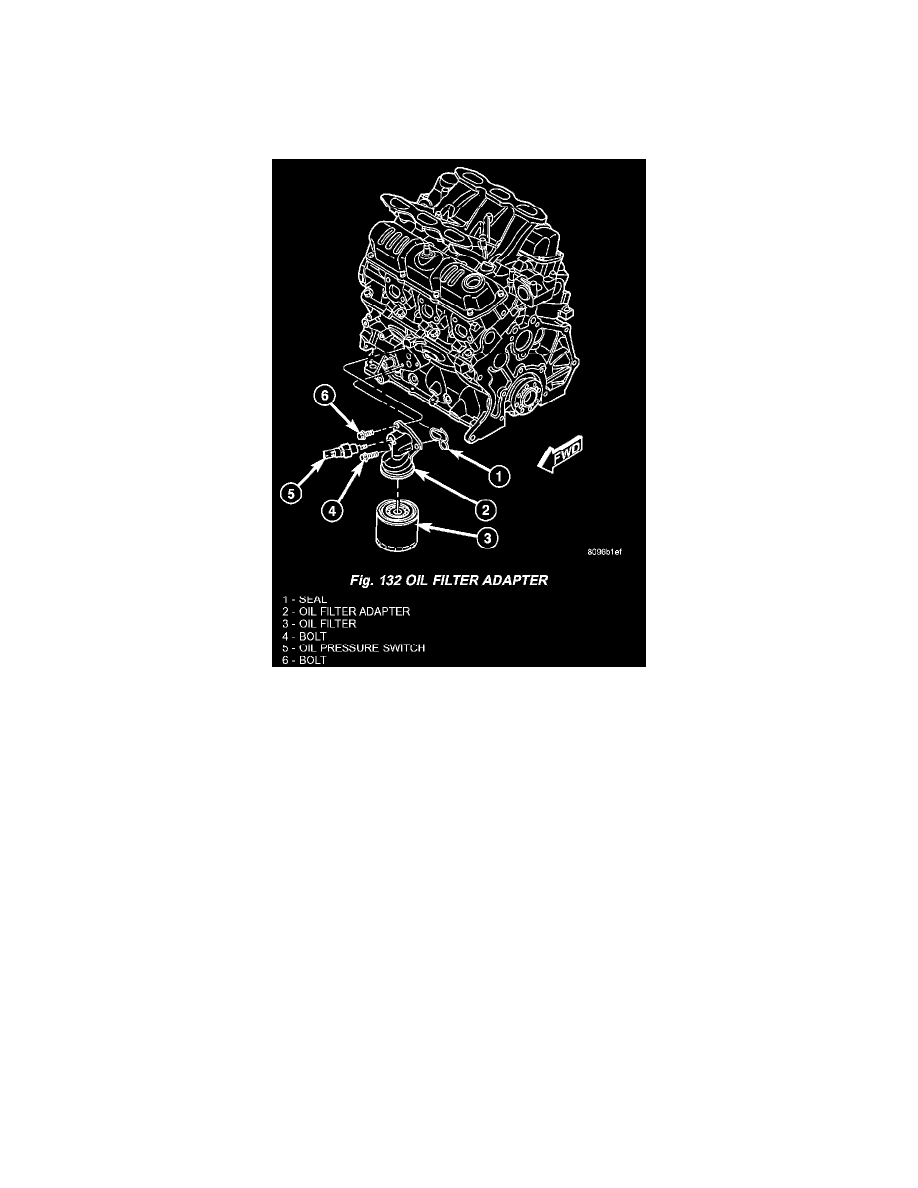

4) Remove oil filter adapter attaching bolts (Fig. 132).
5) Remove oil filter adapter and seal (Fig. 132).
INSTALLATION
1) Clean oil filter adapter and install new seal.
2) Position adapter on engine block and install bolts (Fig. 132).
3) Tighten adapter bolts to 28 Nm (250 inch lbs.).
4) Connect oil pressure switch electrical connector (Fig. 132).
5) Install the oil filter.
6) Lower vehicle on hoist.
7) Start engine and allow to run approximately 2 minutes.
8) Turn off engine and check oil level. Adjust oil level as necessary.
