Front Crankshaft Seal > < Crankshaft Main Bearing Seal|Service and Repair

Pacifica V6-3.8L VIN L (2005)

Page 2
background image

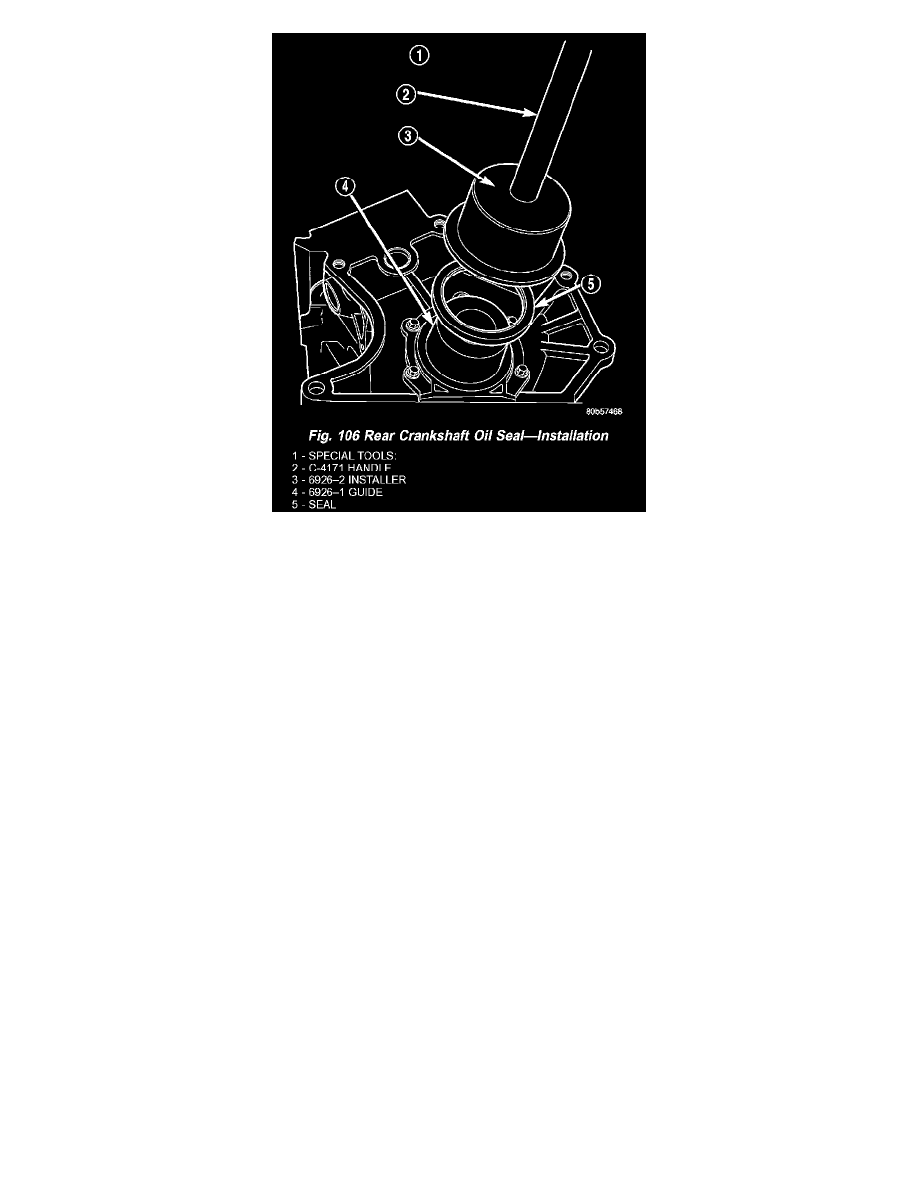

1) Place Special Tool 6926-1 magnetic pilot tool on crankshaft (Fig. 106).
2) Place seal over Special Tool 6926-1 Pilot. Using Special Tool 6926-2 Installer with C-4171 Handle, drive seal into the retainer housing (Fig. 106).
3) Install the flex plate.
4) Install transmission.
