Blower Motor Resistor: Diagrams

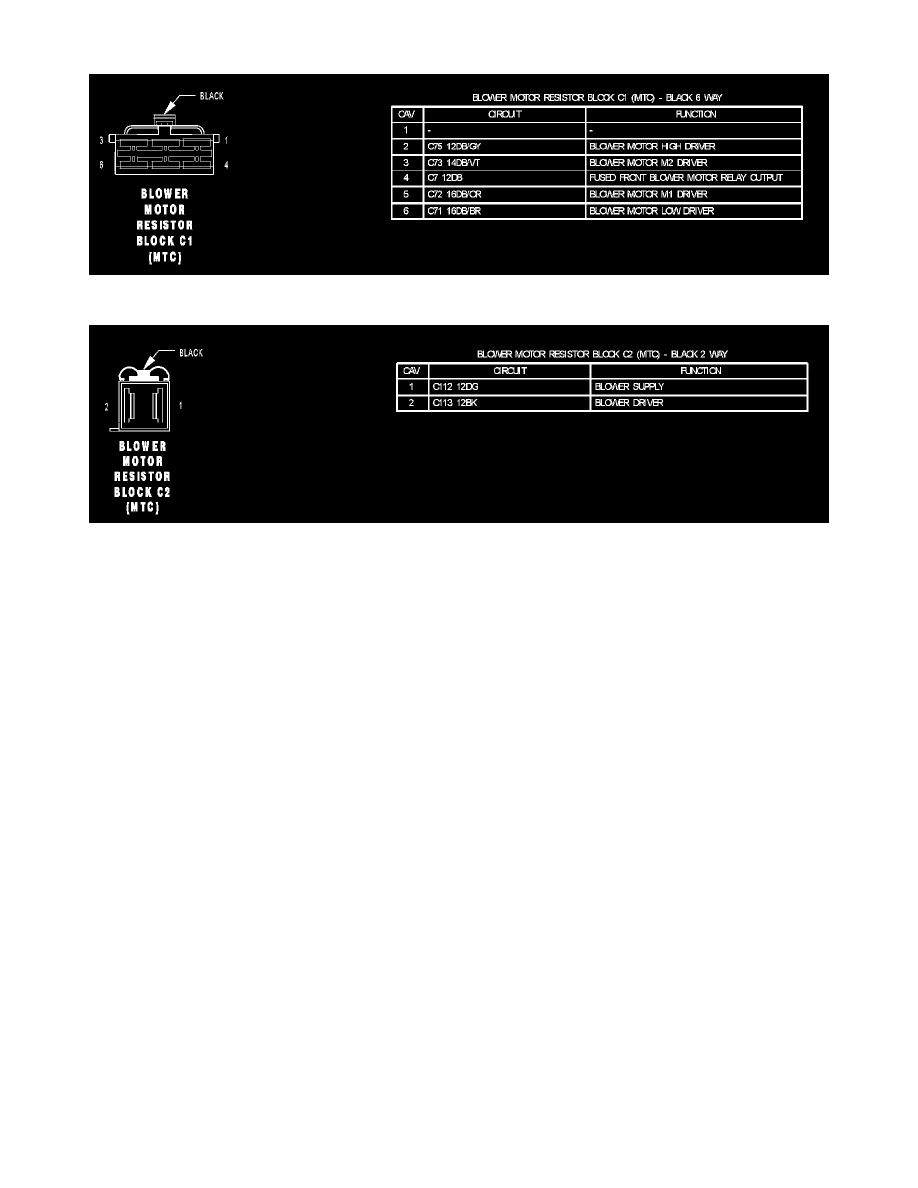

Blower Motor Resistor Block C1 (MTC)

Blower Motor Resistor Block C2 (MTC)
