Pacifica V6-3.8L VIN L (2005)
Compressor Clutch Relay: Service and Repair
REMOVAL
1. Disconnect and isolate the negative battery cable.

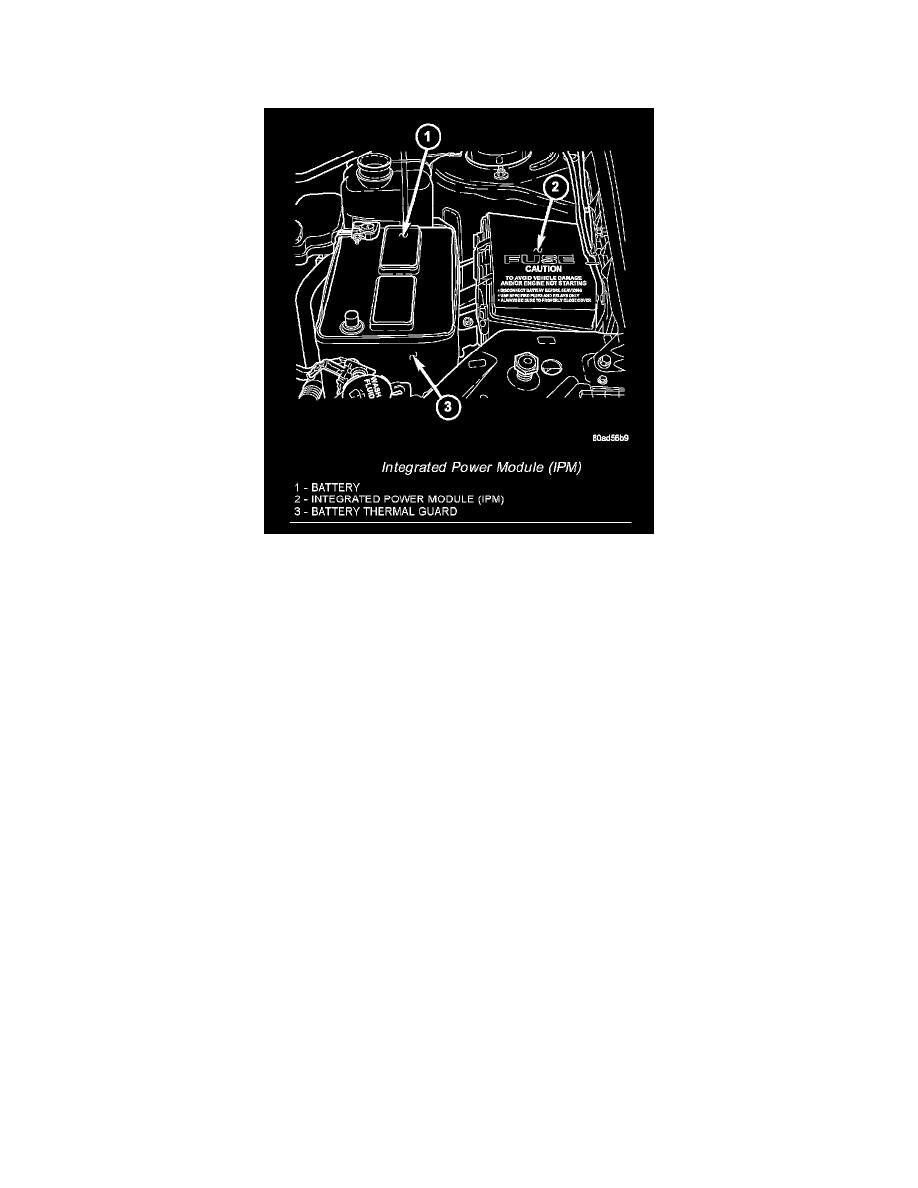

Integrated Power Module (IPM)
2. Remove the cover from the integrated power module (IPM) located in the engine compartment.

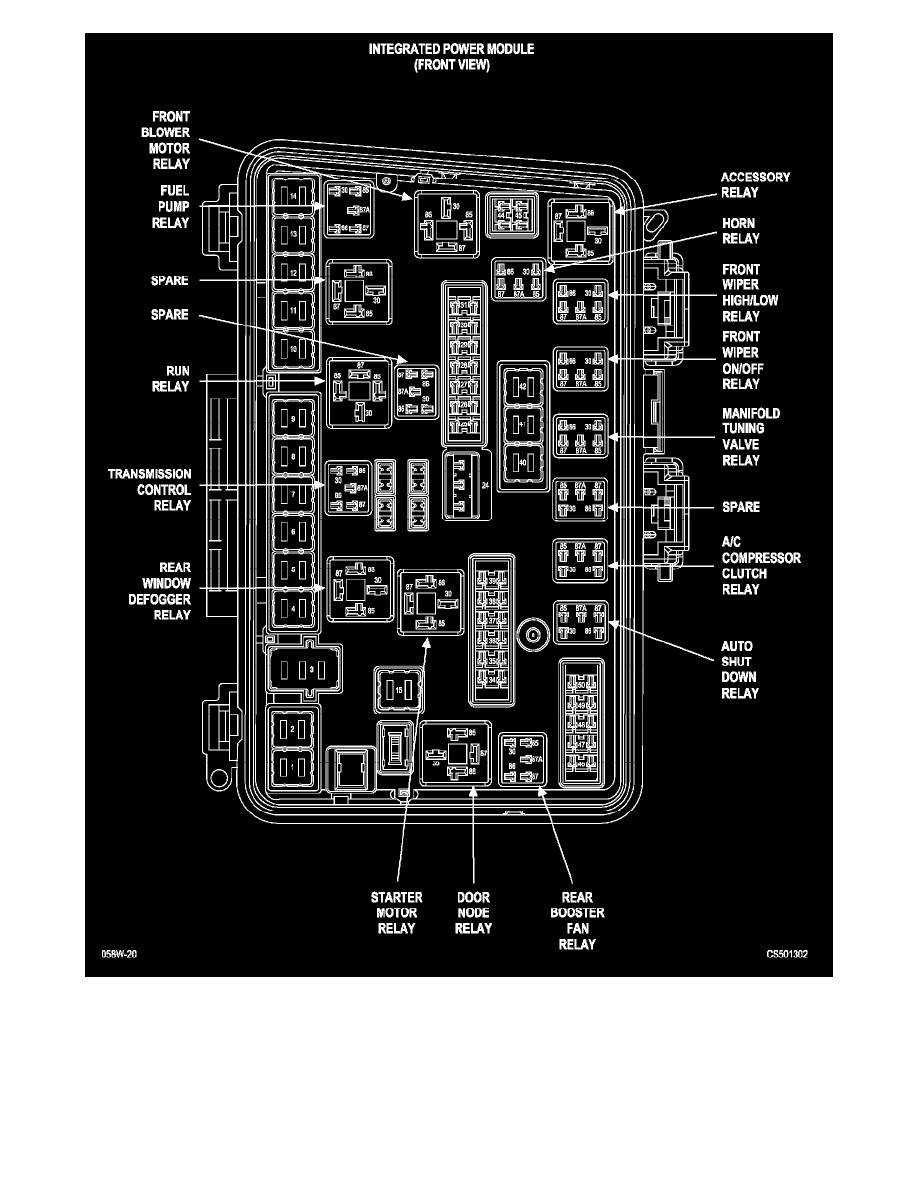

NOTE: Refer to the fuse and relay map on the inside of the IPM cover for A/C compressor clutch relay location.
3. Remove the A/C compressor clutch relay from the IPM.
INSTALLATION
NOTE: Refer to the fuse and relay map on the inside of the integrated power module (IPM) cover for A/C compressor clutch relay location.
1. Position the A/C compressor clutch relay into the receptacle in the IPM.
2. Align the A/C compressor clutch relay terminals with the terminal cavities in the IPM receptacle and push down firmly on the relay until the
terminals are fully seated.
3. Install the cover onto the IPM.
4. Reconnect the negative battery cable.
