Pacifica V6-3.8L VIN L (2005)
Backup Lamp: Service and Repair
REMOVAL
1. Remove the tail lamp unit.

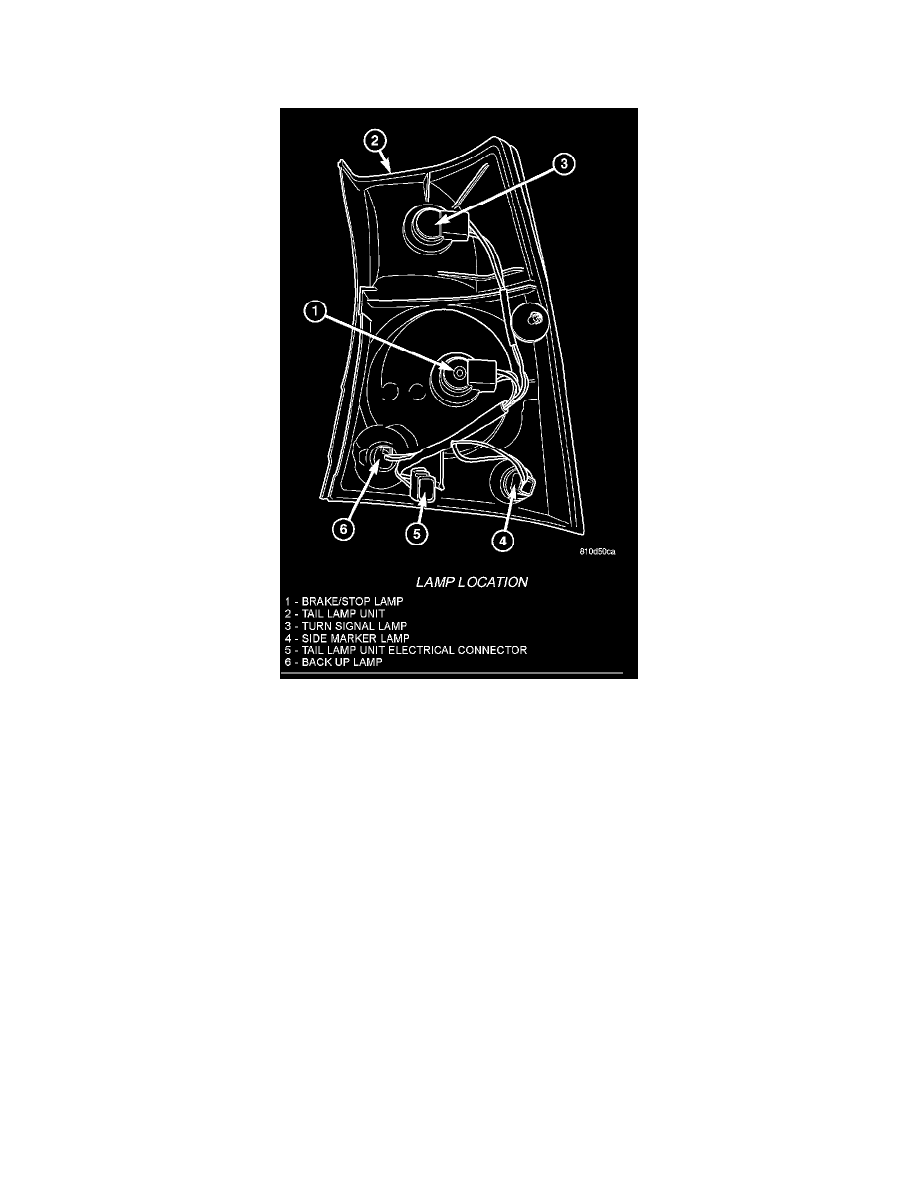

Lamp Location
2. Twist counterclockwise and pull out lamp from tail lamp unit.
3. Pull lamp straight out of lamp socket.
INSTALLATION
1. Push lamp straight into lamp socket.
2. Place lamp into tail lamp unit and then twist clockwise until lamp stops (about 1/4 turn).
3. Install the tail lamp unit.
