Pacifica V6-3.8L VIN L (2005)
5. Position the knuckle back into the strut clevis bracket. Using the direction indicated in the above note, install a flanged bolt from the service

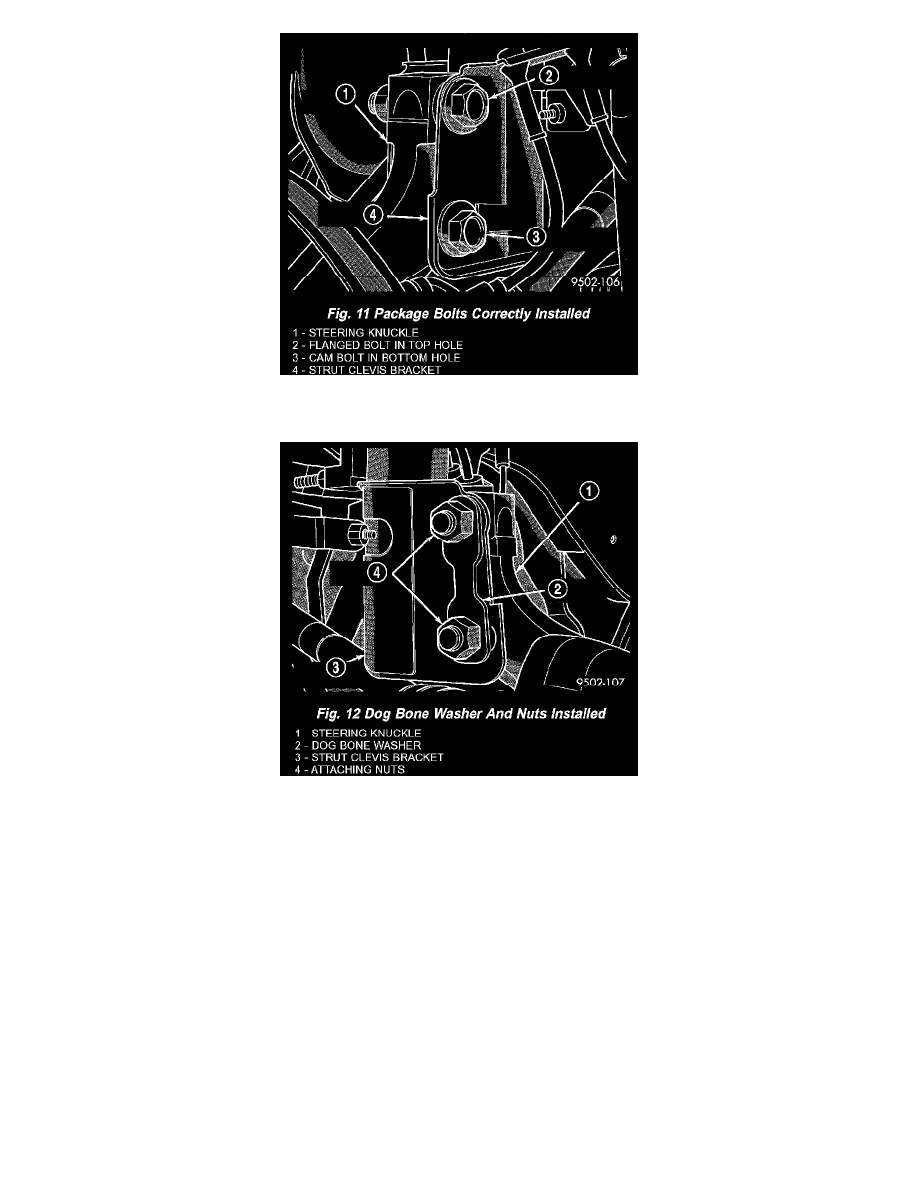

package into the upper mounting hole. Using the direction indicated in the above note, install a cam bolt into the bottom mounting hole (Fig. 11).
6. Install a dog bone washer on the steering knuckle to strut clevis bracket attaching bolts, then install the nuts onto the bolts from the service
package (Fig. 12). Tighten the bolts just enough to hold the steering knuckle in position when adjusting camber, while still allowing the steering
knuckle to move in clevis bracket.
7. Repeat the procedure to the other side strut clevis bracket.
8. Reinstall both front tire and wheel assemblies and tighten to specifications.
9. Lower the vehicle. Jounce the front and rear of vehicle an equal amount of times.
