Pacifica V6-3.8L VIN L (2005)
Engine Oil: Service and Repair
OIL
STANDARD PROCEDURE - ENGINE OIL AND FILTER CHANGE
Change engine oil at mileage and time intervals described in the Maintenance Schedule.
WARNING: NEW OR USED ENGINE OIL CAN BE IRRITATING TO THE SKIN. AVOID PROLONGED OR REPEATED SKIN
CONTACT WITH ENGINE OIL. CONTAMINANTS IN USED ENGINE OIL, CAUSED BY INTERNAL COMBUSTION, CAN BE
HAZARDOUS TO YOUR HEALTH. THOROUGHLY WASH EXPOSED SKIN WITH SOAP AND WATER. DO NOT WASH SKIN
WITH GASOLINE, DIESEL FUEL, THINNER, OR SOLVENTS, HEALTH PROBLEMS CAN RESULT. DO NOT POLLUTE, DISPOSE
OF USED ENGINE OIL PROPERLY. CONTACT YOUR DEALER OR GOVERNMENT AGENCY FOR LOCATION OF COLLECTION
CENTER IN YOUR AREA.
Run engine until achieving normal operating temperature.
1) Position the vehicle on a level surface and turn engine off.
2) Open hood, remove oil fill cap (Fig. 125).
3) Hoist and support vehicle on safety stands. Refer to Vehicle Lifting.

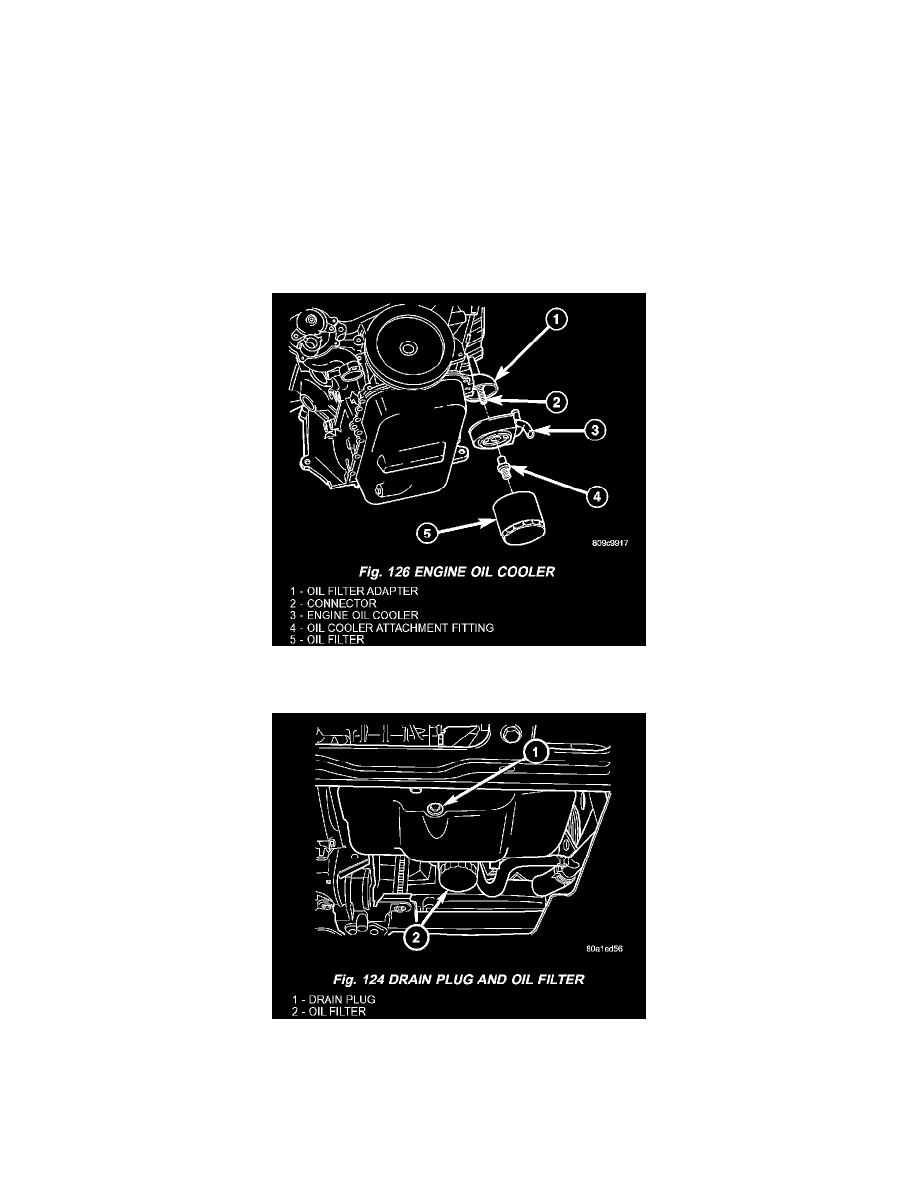

4) Place a suitable drain pan under crankcase drain (Fig. 124).
5) Remove drain plug from crankcase (Fig. 124) and allow oil to drain into pan. Inspect drain plug threads for stretching or other damage. Replace
drain plug and gasket if damaged.
6) Remove oil filter.
7) Install and tighten drain plug in crankcase.
8) Install new oil filter.
