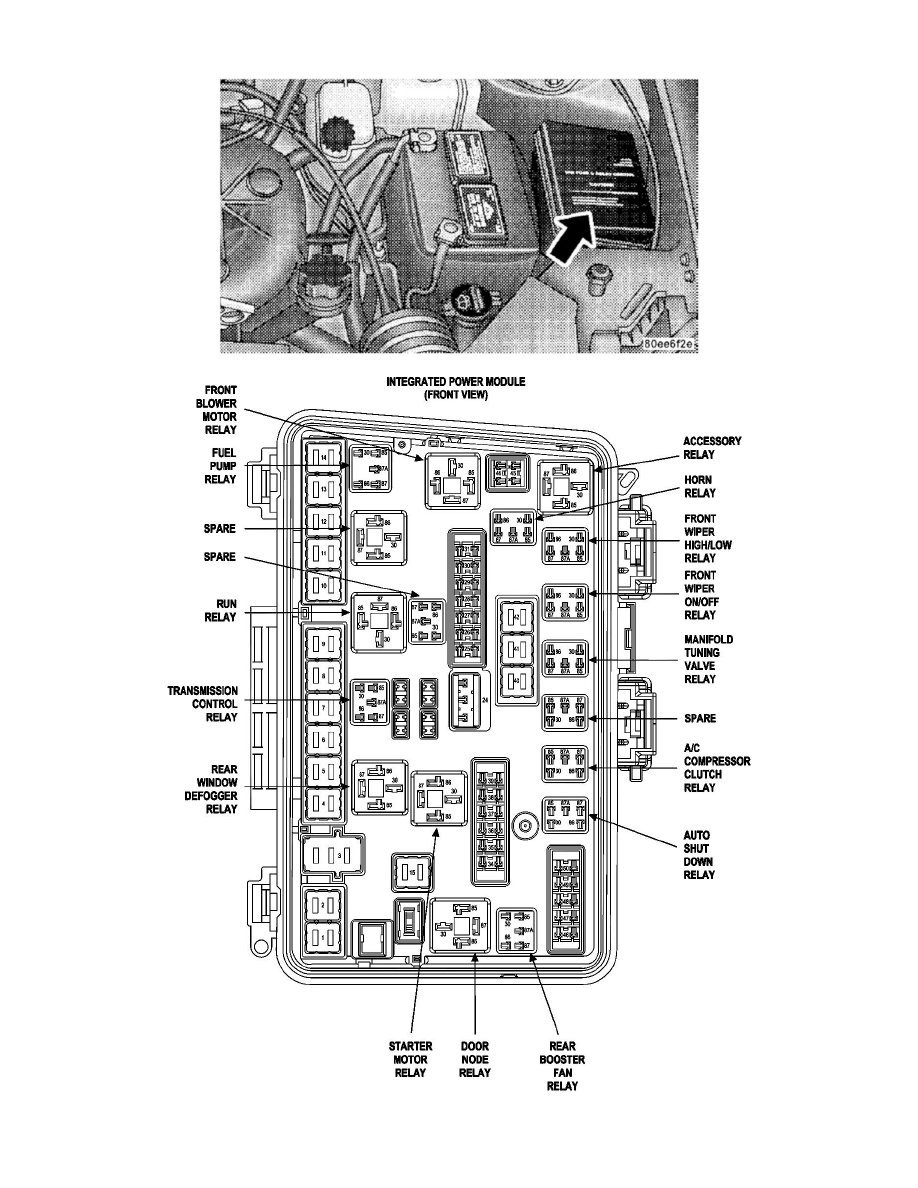

Fuse Block: Locations

Maintenance
Fuses and Circuit Breakers
Fuse Block
Component Information
Locations
