Pacifica V6-3.8L VIN L (2005)
7. Tighten down on Remover, pushing wheel stud out of hub flange. Once shoulder of wheel stud is past flange, remove special tool. Remove nut
from stud and remove stud from hub flange.
INSTALLATION

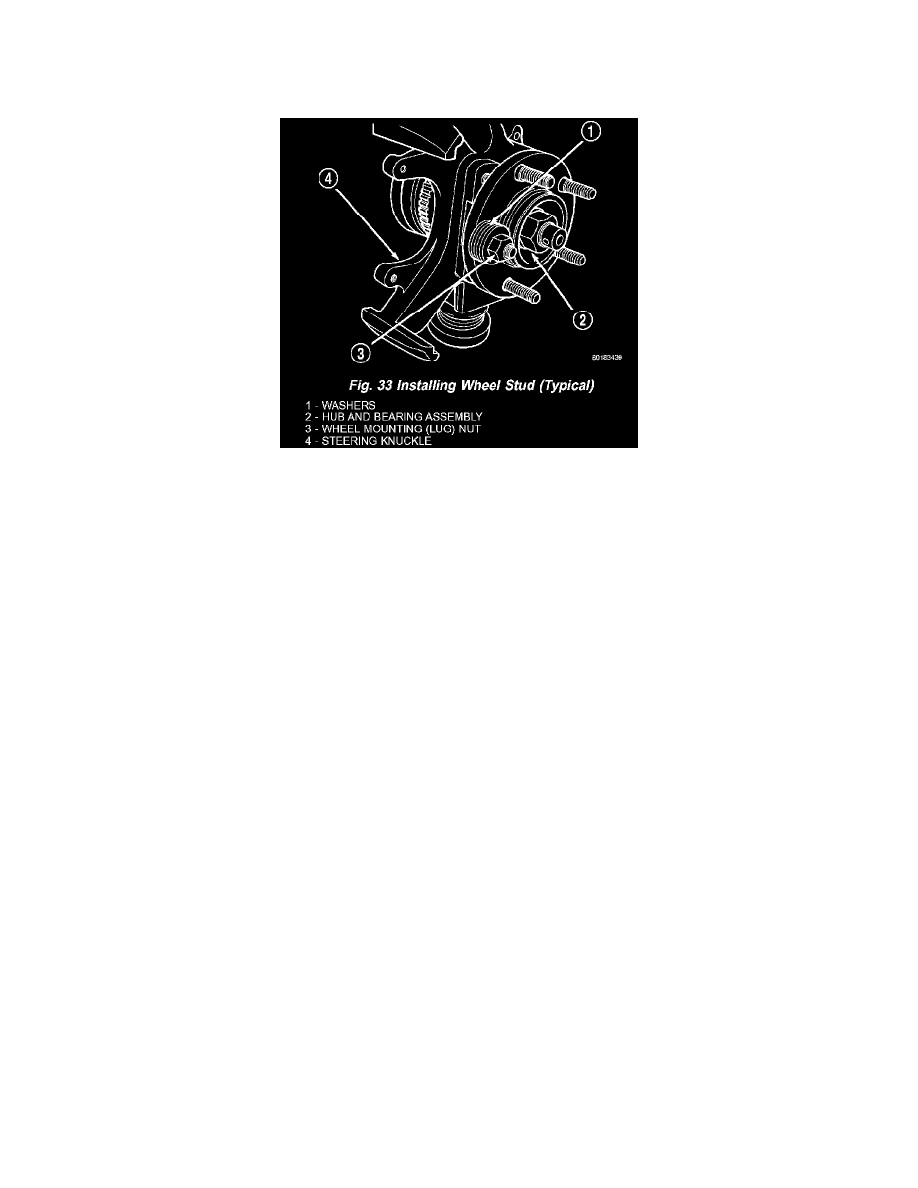

1. Install replacement wheel stud into flange of hub and bearing from rear. Install washers on wheel stud, then install a standard type wheel mounting
(lug) nut on stud with flat side of lug nut against washers as shown (Fig. 33).
2. Tighten nut, pulling wheel stud into hub flange. Once head of stud is fully seated against rear of hub flange, remove nut and washers from stud.
3. Install brake rotor back on hub and bearing (Fig. 31).
4. Install brake caliper and adapter back over brake rotor aligning adapter with mounting holes on steering knuckle (Fig. 31).
5. Install two adapter mounting bolts securing adapter to steering knuckle. Tighten mounting bolts to 169 Nm (125 ft. lbs.) torque.
6. Install wheel and tire assembly. Tighten wheel mounting (lug) nuts in proper sequence to 135 Nm (100 ft. lbs.) torque.
7. Lower vehicle.
8. Road test vehicle to ensure proper operation of the brakes.
