Pacifica V6-3.8L VIN L (2005)
Auxiliary Power Outlet: Service and Repair
REMOVAL
1. Disconnect and isolate the battery negative cable.

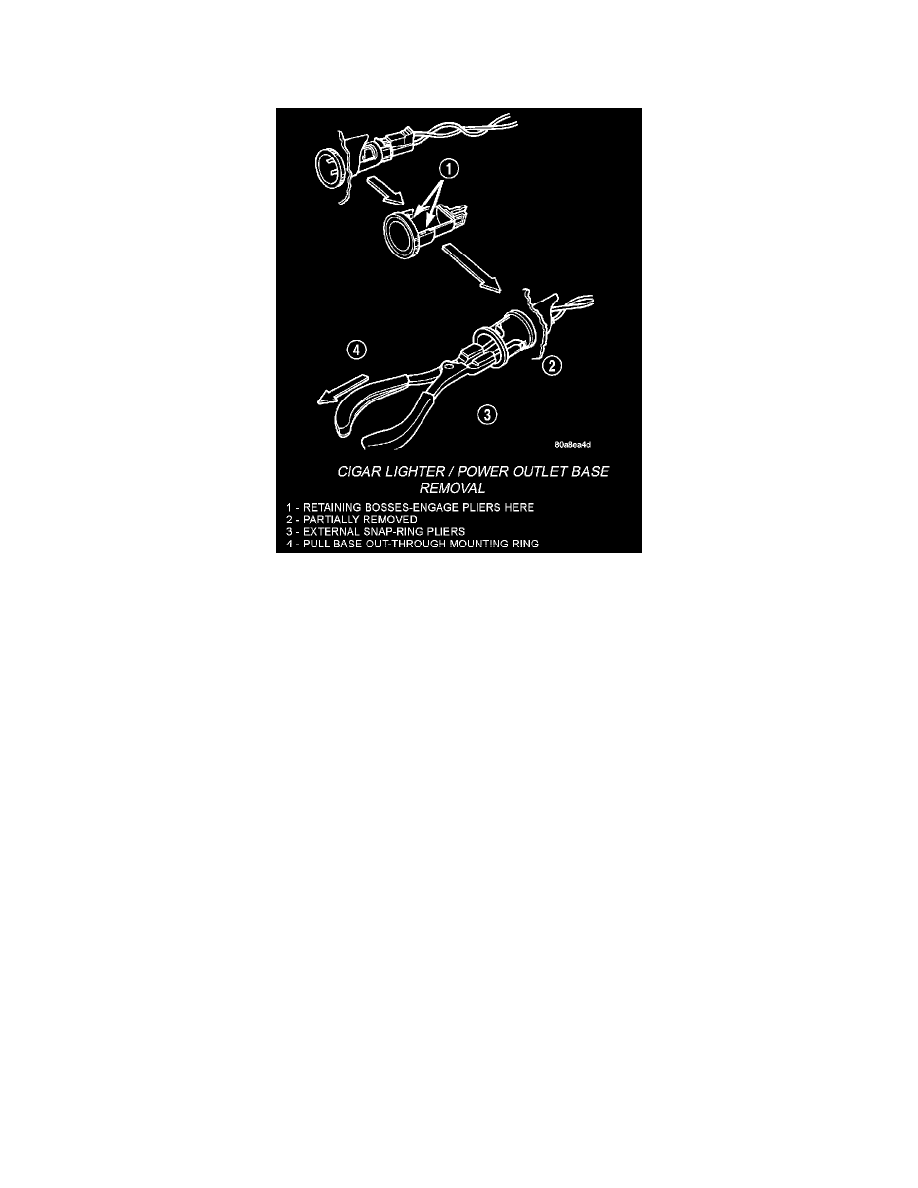

Cigar Lighter/Power Outlet Base Removal
2. Look inside and note position of the retaining bosses.
3. Using external snap ring pliers with 90 degree tips. Insert pliers with tips against bosses and squeeze forcing bosses out of base.
4. Pull out the base through mounting ring by gently rocking pliers.
5. Disconnect the base wires.
6. Set base aside and remove base mount ring.
INSTALLATION
1. Install base mount ring.
2. Connect the base wires.
3. Firmly snap base into position inside of instrument panel.
4. Connect the battery negative cable.
