Pacifica V6-3.8L VIN L (2005)
![background image](/chrysler/pacifica/v6-3.8l_vin_l/Page-851029.png)

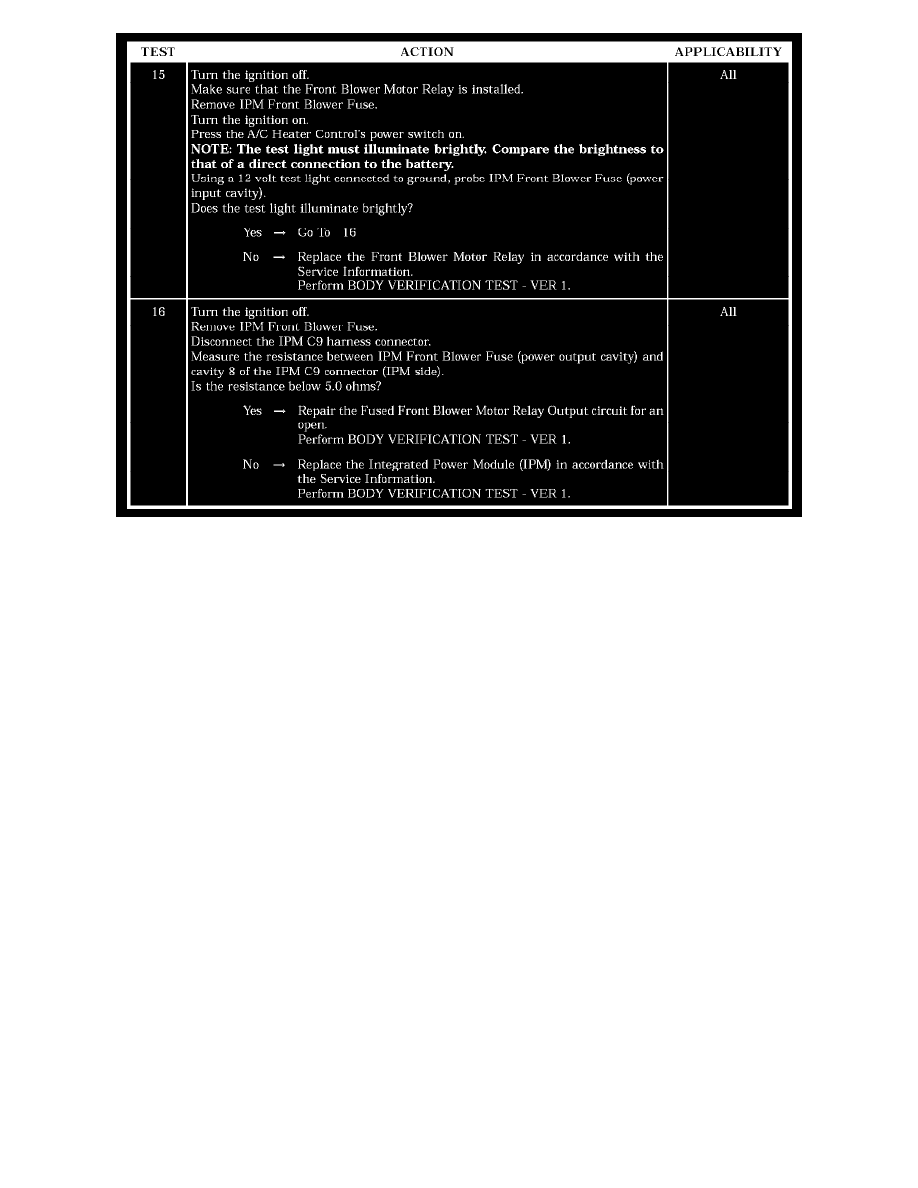

Test 15 - 16
SYMPTOM
BLOWER MOTOR INOPERATIVE - MTC
POSSIBLE CAUSES
-
Integrated power module (IPM) DTC(s) present
-
IPM front blower fuse
-
Fused front blower motor relay output circuit shorted to ground
-
Blower motor resistor block shorted to ground
-
Blower motor resistor block shorted to ground
-
Blower motor
-
Blower motor
-
A/C heater control
-
Ground circuit open
-
Blower motor high driver circuit open
-
Blower motor resistor block open
-
Blower motor resistor block open
-
IPM - open circuit
-
IPM - open circuit
-
Front blower motor relay
-
IPM - open circuit
-
Fused front blower motor relay output circuit open
Blower Speed Does Not Correspond With Control Setting - MTC
