Pacifica V6-3.8L VIN L (2005)

Page 2
background image

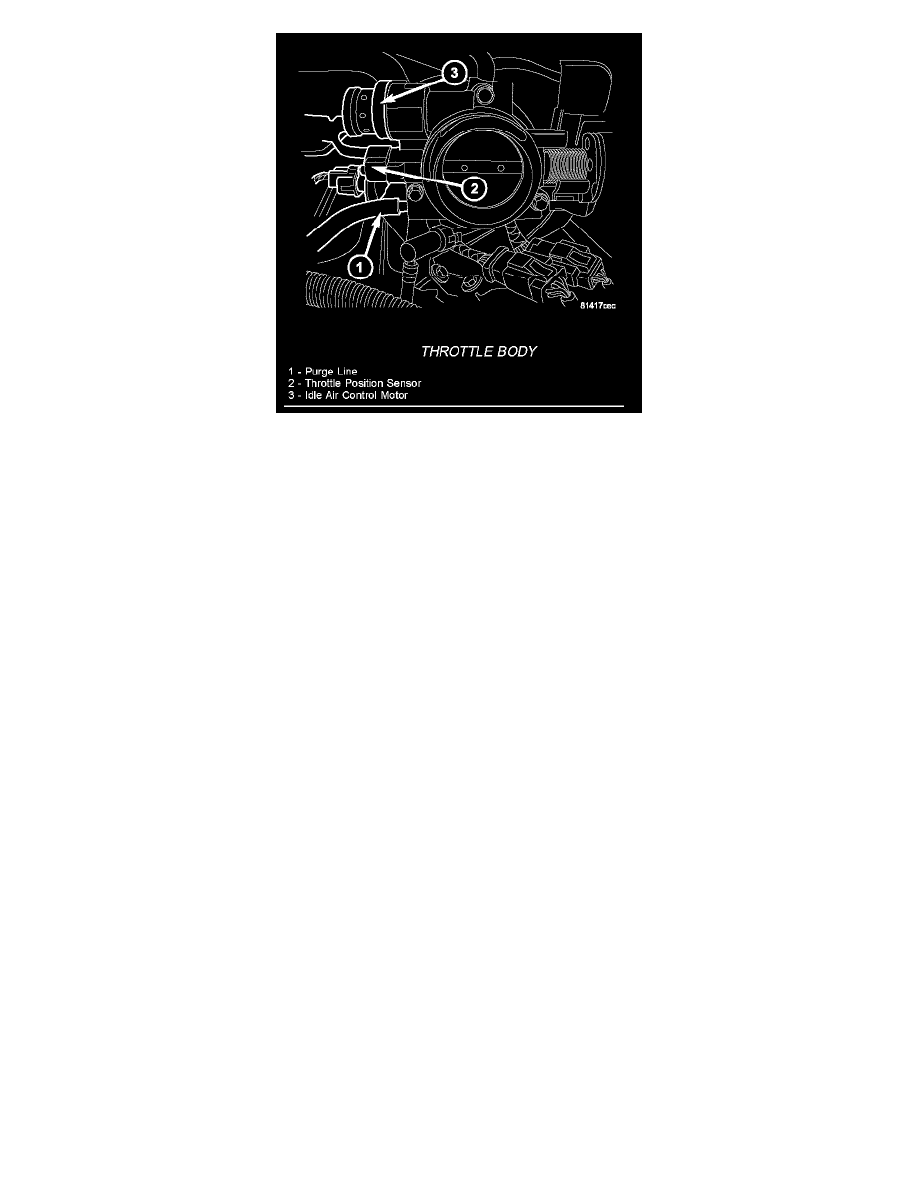

Throttle Body

2. Carefully place idle air control motor into throttle body.
3. Install mounting screw(s). Tighten mounting screw to 5.5 N.m (49 in. lbs.) torque.
4. Connect electrical connector to idle air control motor.
5. Connect negative cable to battery.
