Chrysler Workshop Service and Repair Manuals > Pacifica V6-3.8L VIN L (2005) > Powertrain Management | Computers and Control Systems | Main Relay (Computer/Fuel System) | Component Information | Locations

Manifold Pressure/Vacuum Sensor > < Knock Sensor|Locations|Page 2912

Page 1

background image

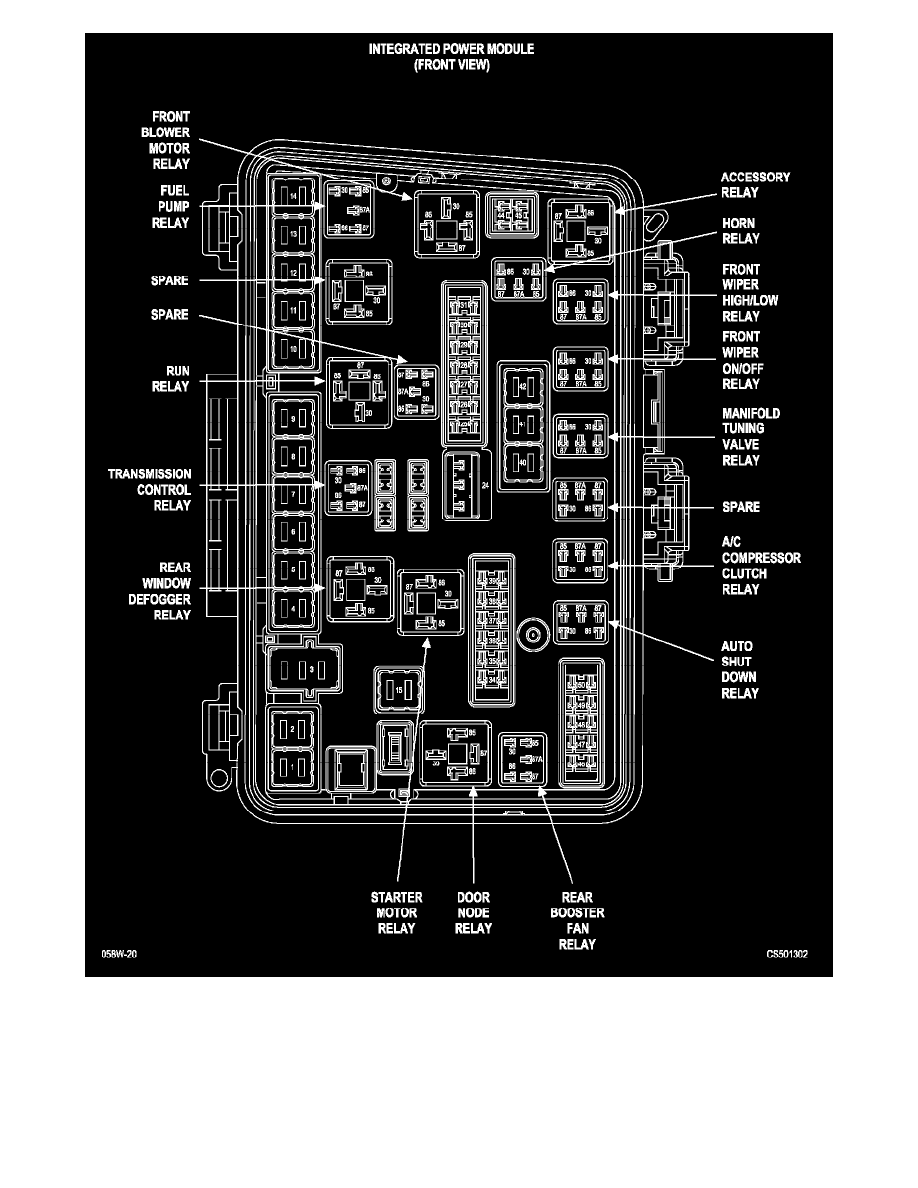

Integrated Power Module (Front View)

Powertrain Management
Computers and Control Systems
Main Relay (Computer/Fuel System)
Component Information
Locations

Manifold Pressure/Vacuum Sensor > < Knock Sensor|Locations|Page 2912
