Pacifica V6-3.8L VIN L (2005)
![background image](/chrysler/pacifica/v6-3.8l_vin_l/Page-934002.png)

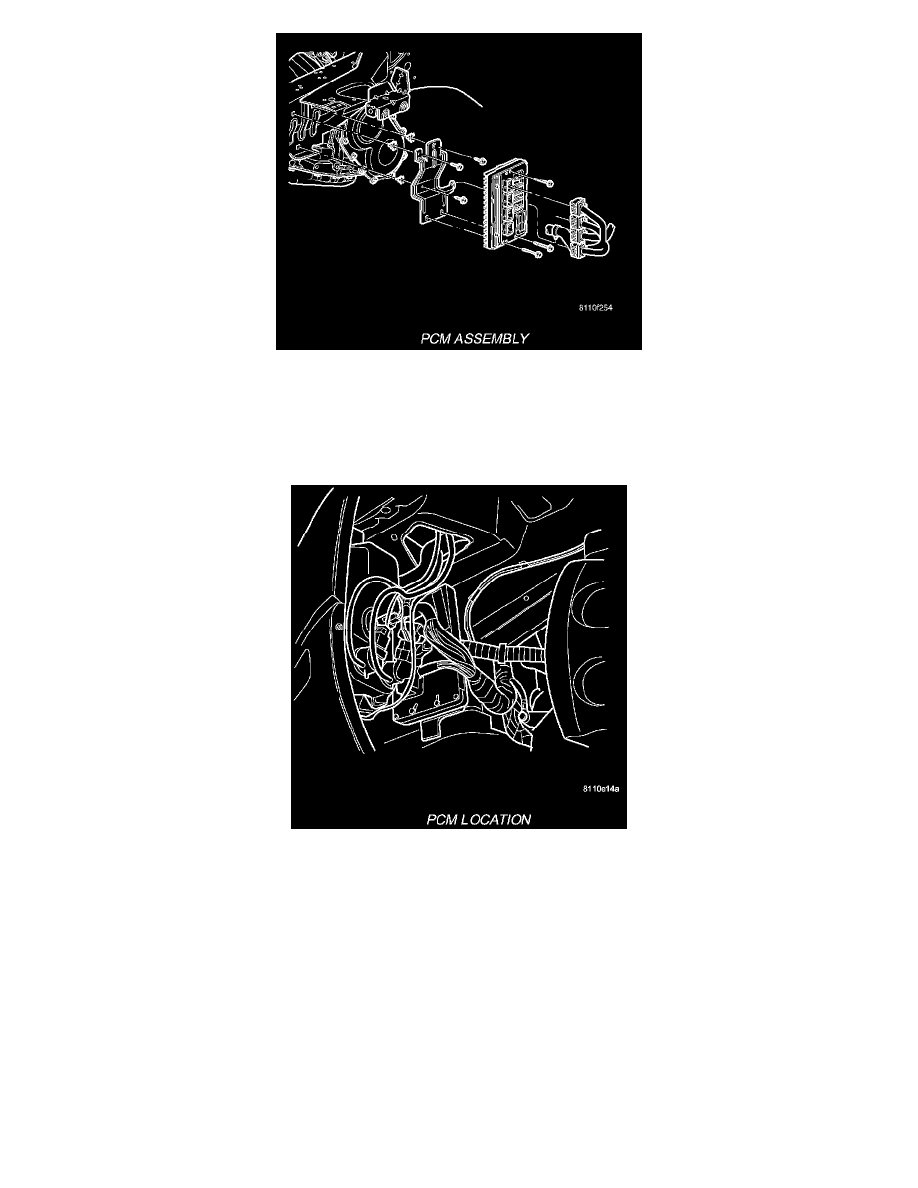

PCM Assembly
2. Install the 3 mounting screws.
3. Tighten screws.
NOTE: The PCM connectors are color coded.
PCM Location
4. Install and lock the 4 electrical connectors.
5. Install the left front splash shield.
6. Install the left front wheel.
7. Lower vehicle.
8. Connect the negative battery cable.
