Pacifica V6-3.8L VIN L (2005)

Page 2
background image

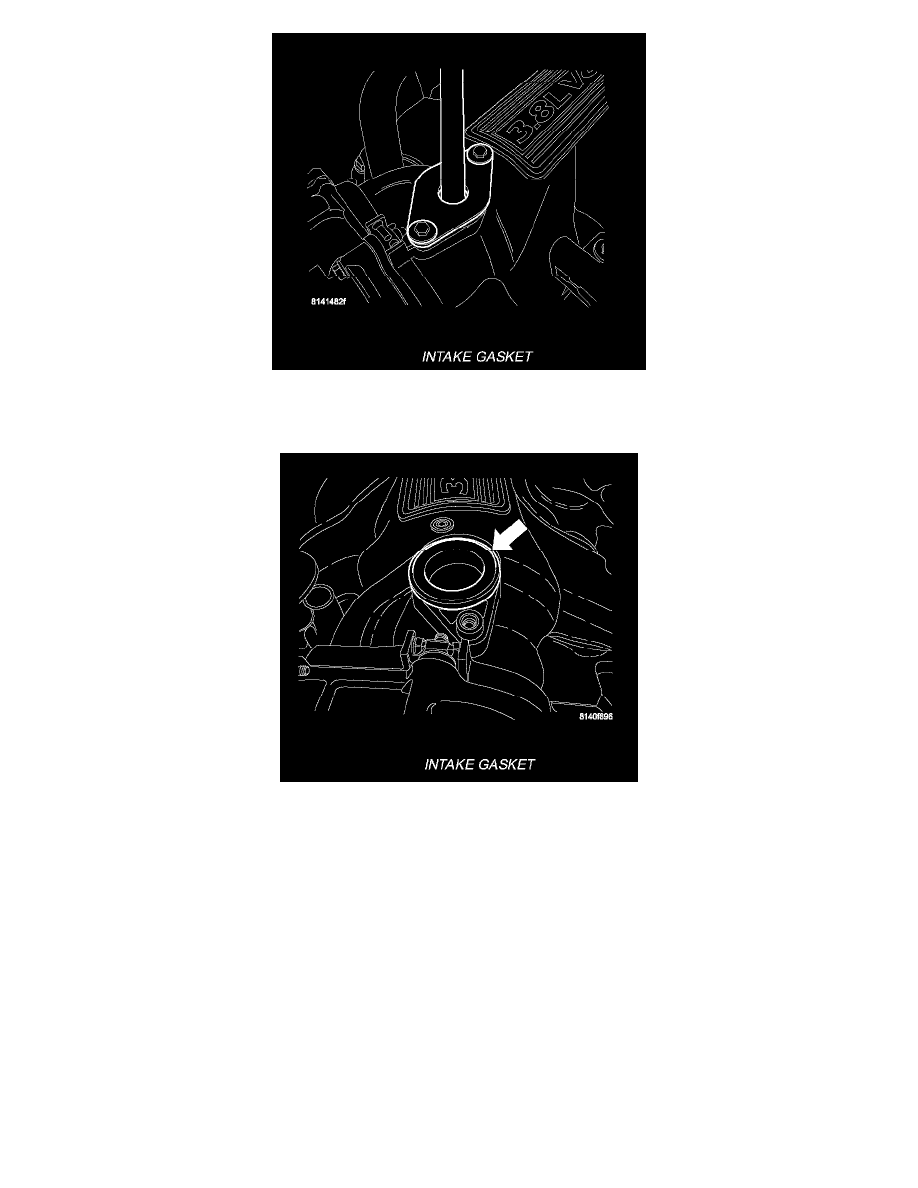

Intake Gasket

3. Remove the 2 bolts from tube flange at intake manifold.

Intake Gasket

4. Remove EGR tube from gasket.
