Pacifica V6-3.8L VIN L (2005)
![background image](/chrysler/pacifica/v6-3.8l_vin_l/Page-1023001.png)
Air Filter Element: Service and Repair
AIR CLEANER ELEMENT
REMOVAL

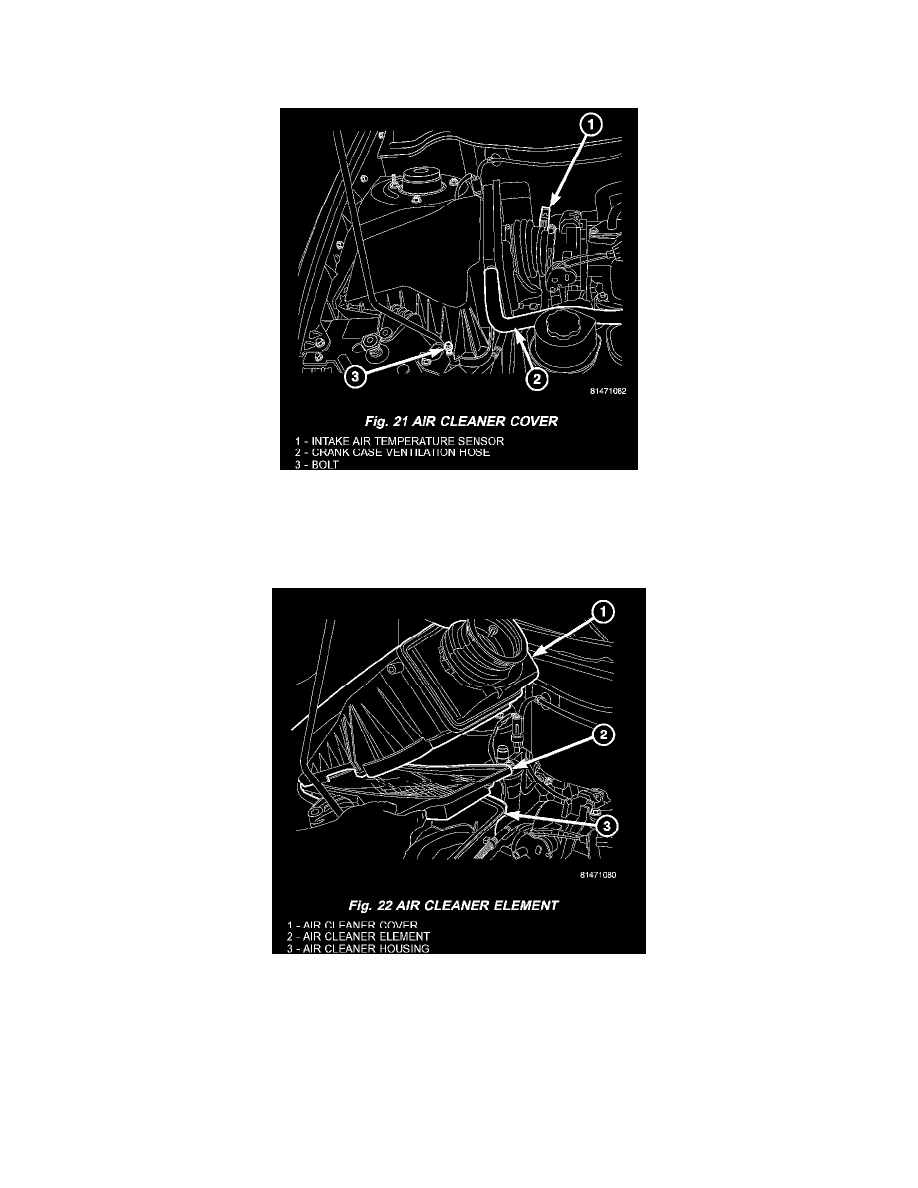

1) Disconnect the IAT sensor (Fig. 21).
2) Disconnect the CCV hose (Fig. 21).
3) Separate the air inlet tube from the throttle body (Fig. 21).
4) Remove the air cleaner cover bolts (Fig. 21).
5) Lift cover and pull toward the engine and remove cover tabs from air cleaner housing.
6) Lift cover and remove the filter (Fig. 22).
INSTALLATION
