Pacifica V6-3.8L VIN L (2005)
Fuel Injector: Service and Repair
REMOVAL
1. Release fuel pressure.
2. Disconnect the negative battery cable.
3. Remove air cleaner housing and inlet hose.
4. Remove engine cover.

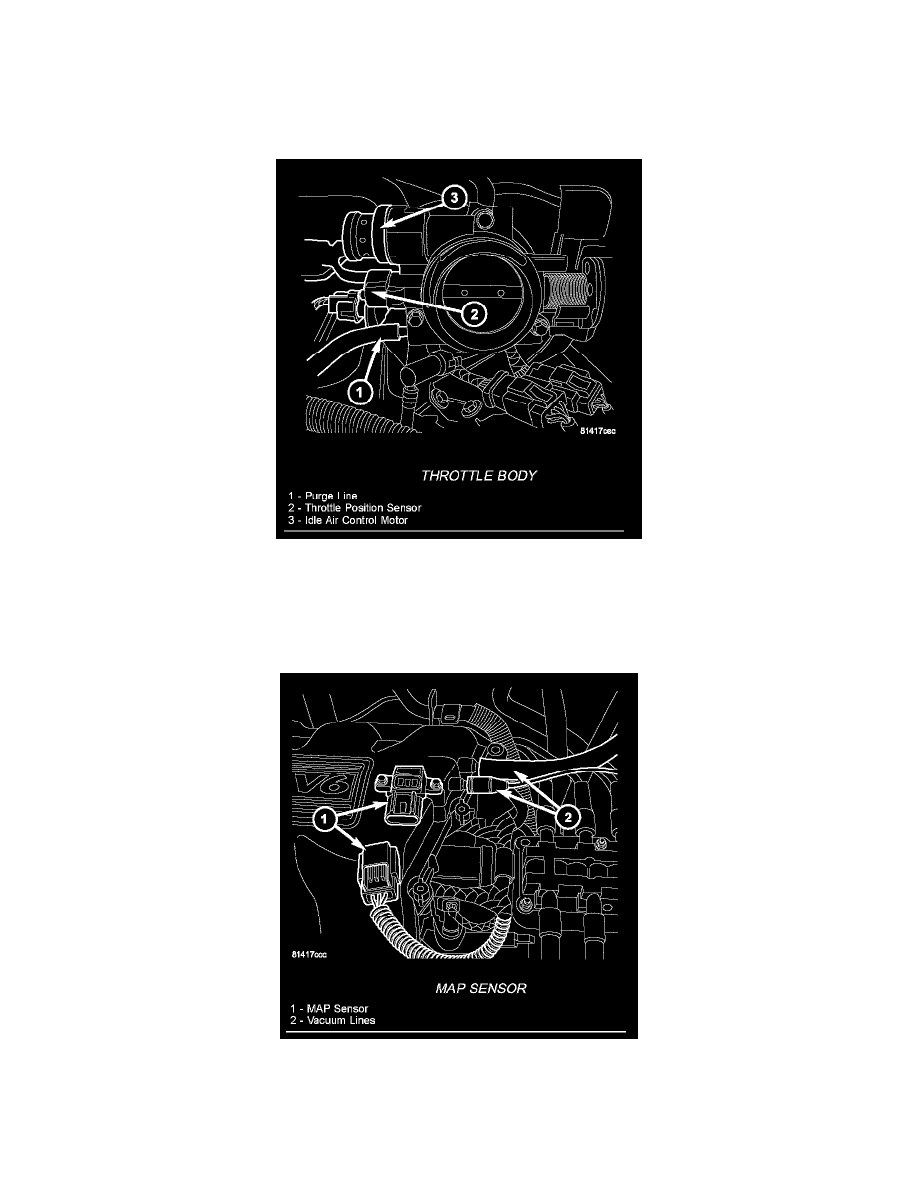

Throttle Body
5. Disconnect the Throttle Position Sensor.
6. Disconnect the Idle Air Control.
7. Disconnect the purge line.
8. Disconnect the throttle and speed control cables (if equipped).
Map Sensor
9. Unlock and disconnect the MAP sensor.
10. Disconnect the vacuum lines.
11. Remove the EGR tube.
