Pacifica V6-3.8L VIN L (2005)

Page 13
background image

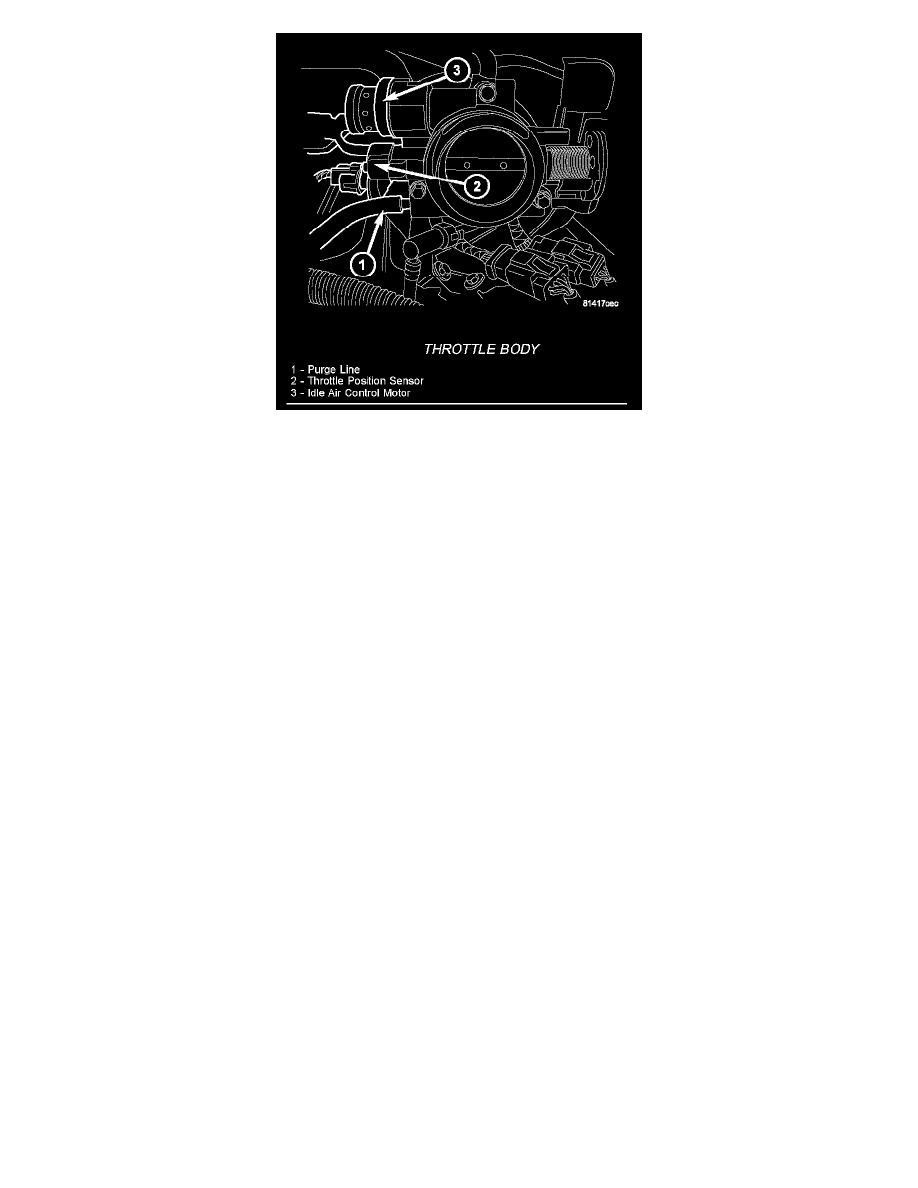

Throttle Body

16. Connect the electrical connector for Throttle Position Sensor (2), Idle Air Control Motor (3).
17. Connect the purge line (1).
18. Connect negative cable to battery.
