Pacifica V6-3.8L VIN L (2005)
![background image](/chrysler/pacifica/v6-3.8l_vin_l/Page-1047001.png)
Fuel Filler Neck: Service and Repair
REMOVAL
1. Release the fuel pressure.
2. Disconnect the negative battery cable.
3. Raise vehicle and support.
4. Remove the left rear tire.
5. Remove the left rear splash shield.

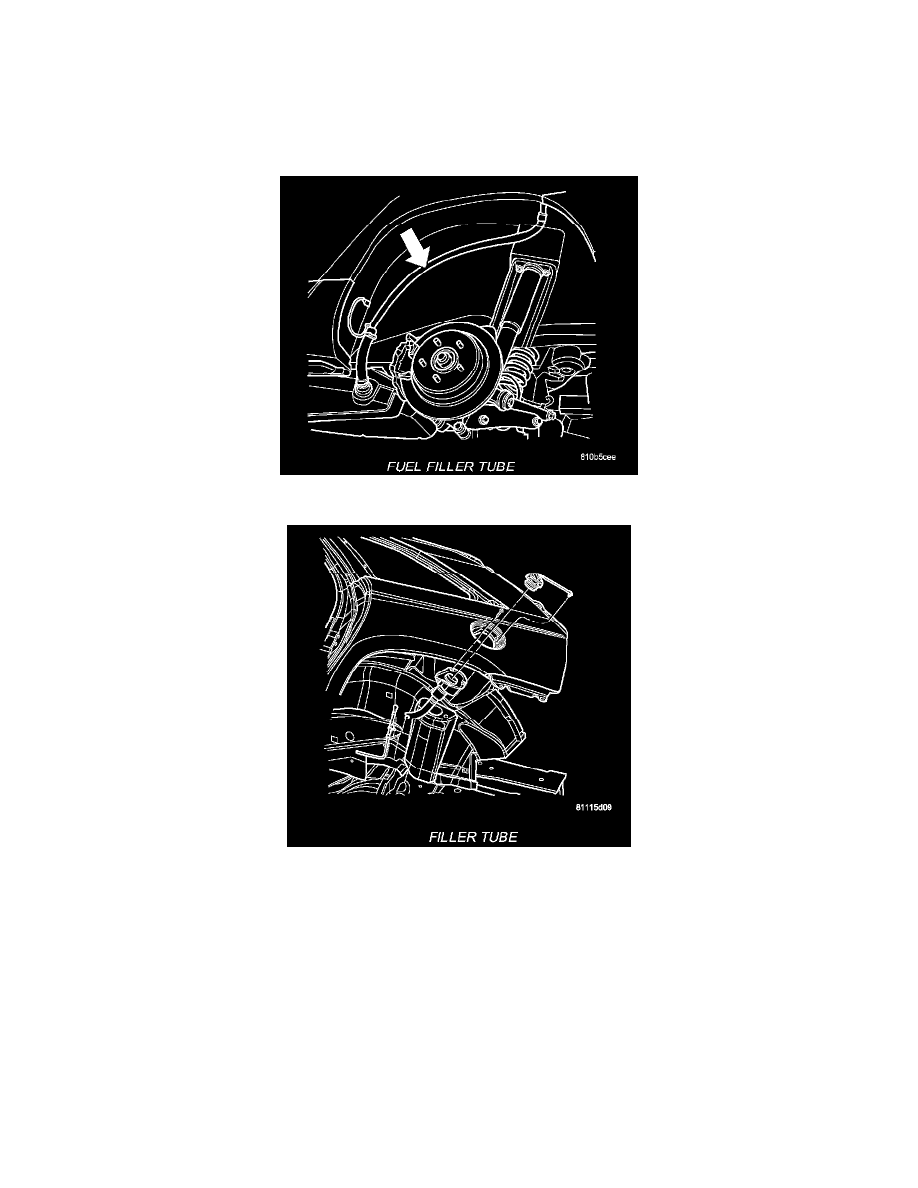

Fuel Filler Tube
Filler Tube
6. Remove 3 screws from filler neck to quarter panel.
7. Disconnect the vent line to filler tube.
