Fuel System - Throttle Body Cleaning Procedure|Page 3673 > < Fuel System - Throttle Body Cleaning Procedure|Page 3671

Pacifica V6-3.8L VIN L (2005)

Page 3
background image

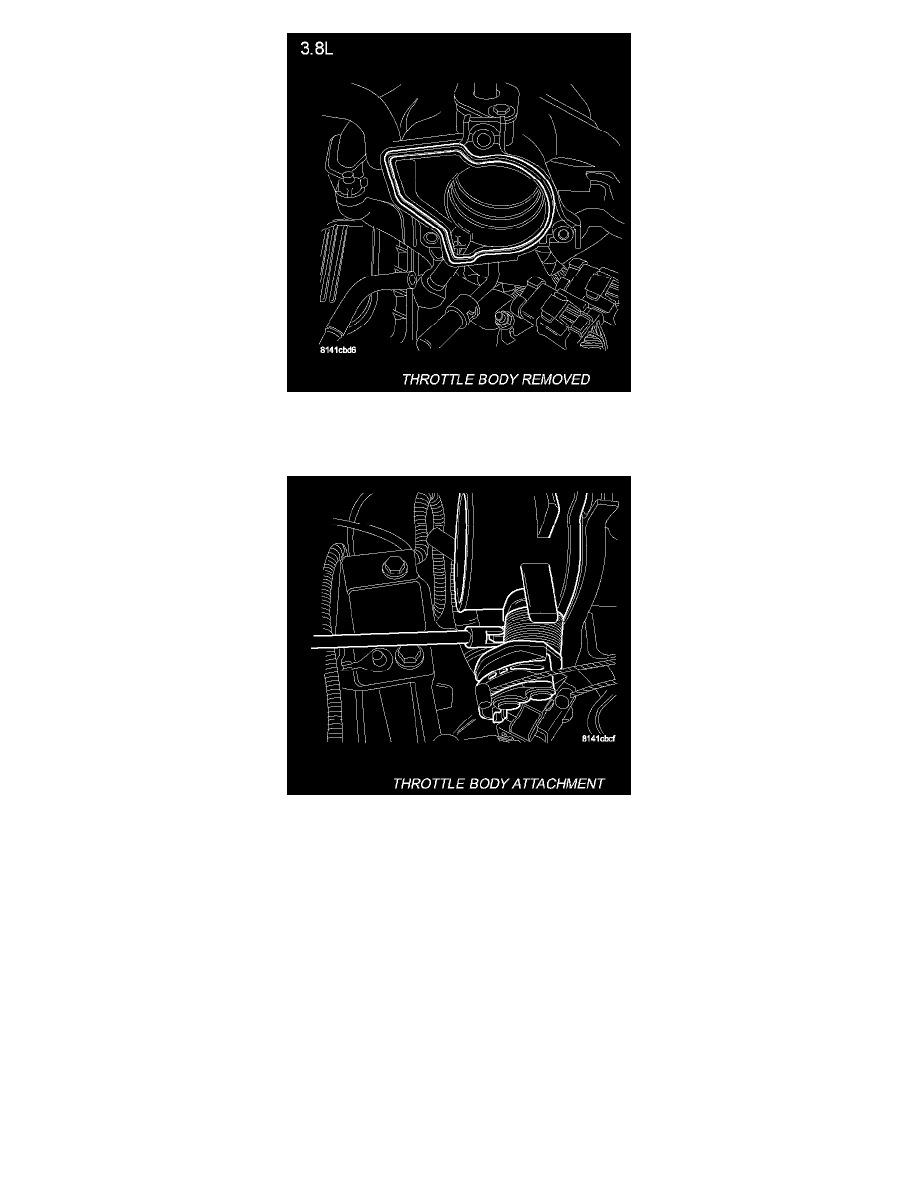

Throttle Body Removed

2. Install throttle body gasket.

Throttle Body Attachment

3. Install throttle body.
4. Install 3 throttle body bolts and tighten.

Fuel System - Throttle Body Cleaning Procedure|Page 3673 > < Fuel System - Throttle Body Cleaning Procedure|Page 3671
