Pacifica V6-3.8L VIN L (2005)

Page 1
background image

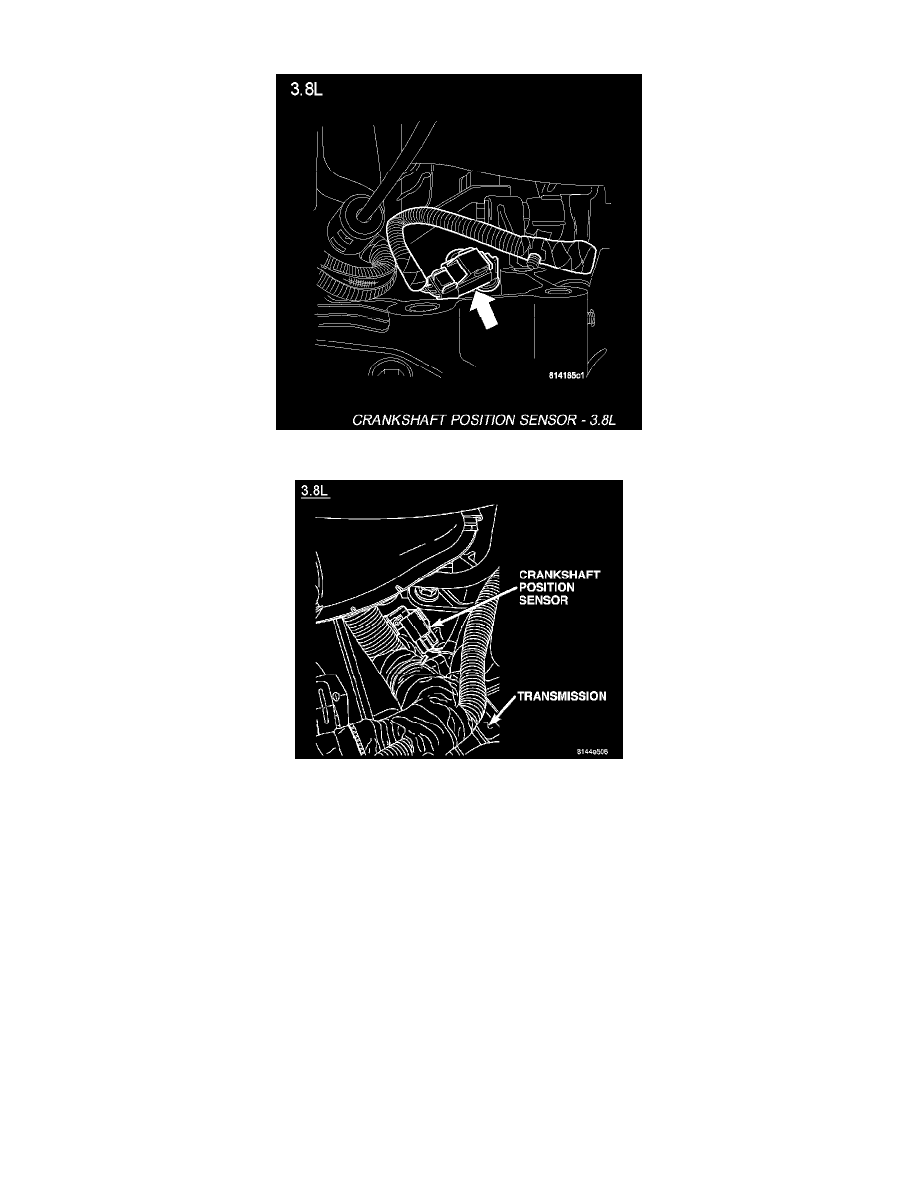

Crankshaft Position Sensor: Component Locations

Crankshaft Position Sensor - 3.8L

3.8L

The crankshaft sensor is located on the driver side of the vehicle, above the differential housing.
