Pacifica V6-3.8L VIN L (2005)

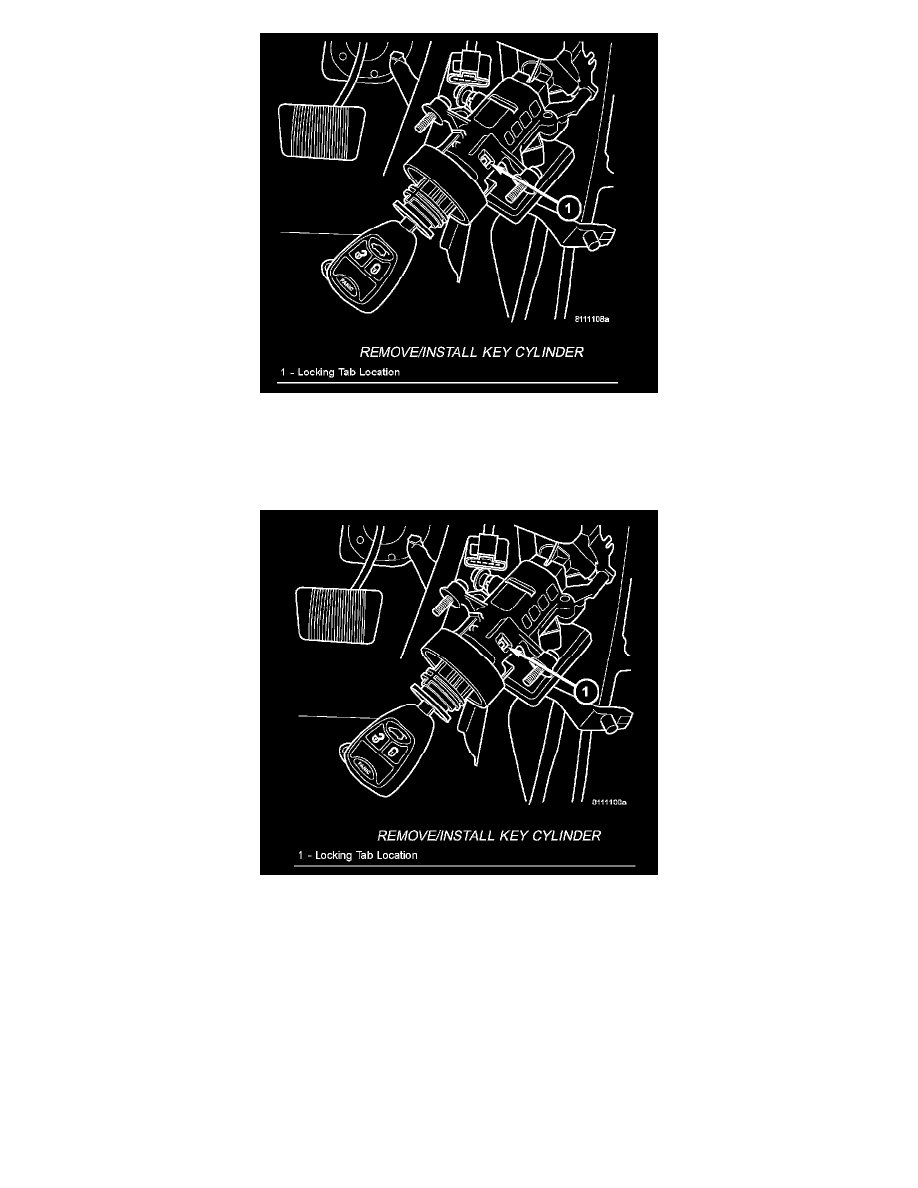

Remove/Install Key Cylinder
6. Pull the key cylinder from the ignition switch housing.
INSTALLATION
Remove/Install Key Cylinder
1. Install key in lock cylinder. Turn key to "ON" position (retaining tab on lock cylinder can be depressed).
2. The shaft at the end of the lock cylinder aligns with the socket in the end of the housing. To align the socket with the lock cylinder, ensure the
socket is in the "ON" position.
3. Align the lock cylinder with the grooves in the housing. Slide the lock cylinder into the housing until the tab sticks through the opening in the
housing.
