Pacifica V6-3.8L VIN L (2005)
c.
When the flash process is complete, proceed to the next step.
13.
Reset the "Pinion Factor" as necessary.
14.
Perform the transmission Quick learn Procedure as necessary.
15.
Due to the PCM programming procedure, a Diagnostic Trouble Code (DTC) may be set in other modules within the vehicle. Some DTC's may
cause the Malfunction Indicator Lamp (MIL) to illuminate. Check all modules using "Module Scan", record the DTC's and erase these DTC's prior
to returning the vehicle to the customer. Erase any DTC's in the PCM only after all other modules have had their DTC's erased.
16.
Turn off the battery charger and disconnect it from the vehicle.
17.

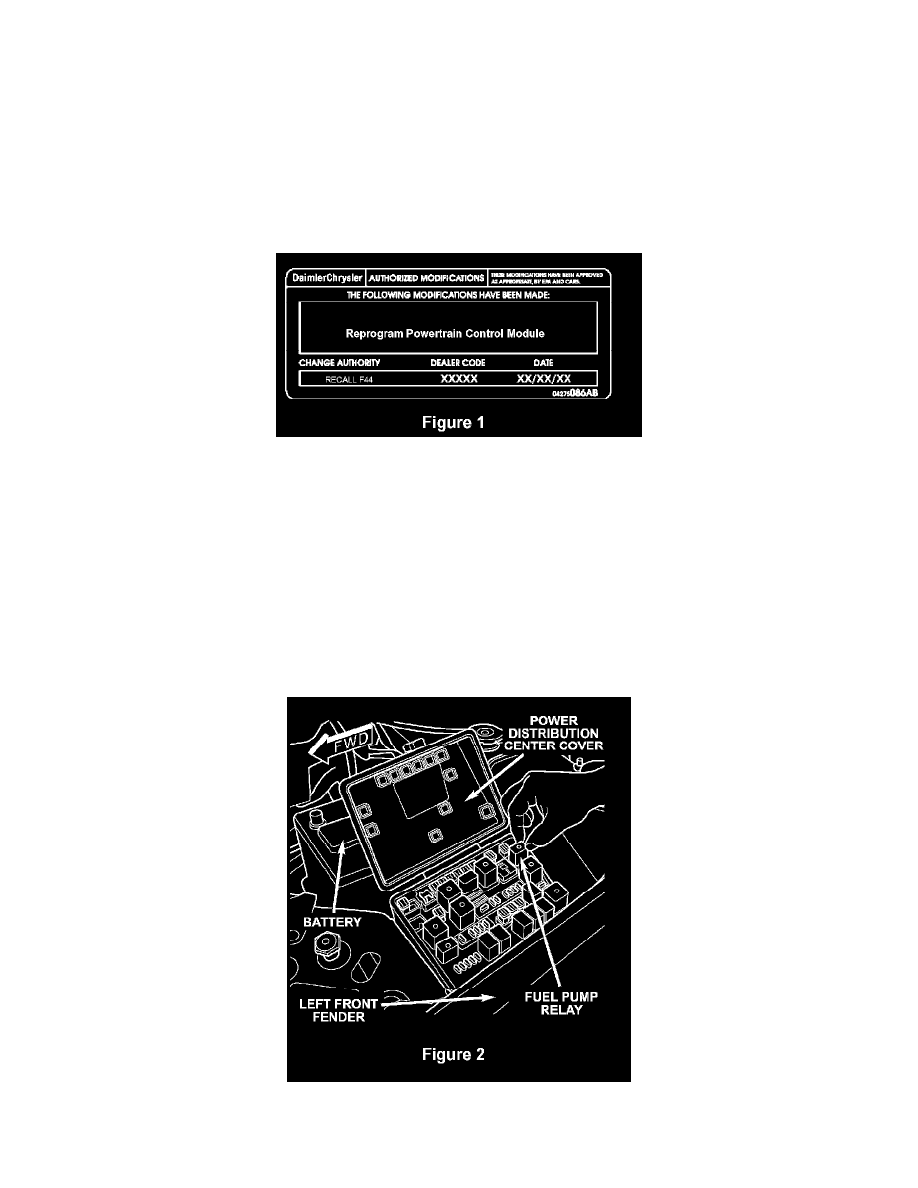

Type or print (with a ballpoint pen) the recall number, dealer code and date on an Authorized Modifications Label (Figure 1).
18.
Attach the Authorized Modifications label near the VECI label.
19.
For vehicles build from August 1, 2004 through September 30, 2004 (MDH 080100 through 093023) continue with Section B. Replace Fuel Pump
Module. Vehicles with a build date that is not in the above date range DO NOT require a new fuel pump module.
B. Replace Fuel Pump Module
NOTE:
Fuel pump module replacement is only required on vehicles built from
August 1, 2004 through September 30, 2004 (MDH 080100 through 093023).
1.
Release the fuel pressure from the fuel system using the following procedure:
a.
Open the Power Distribution Center (PDC) cover located next to the battery (Figure 2).
b.
Remove the fuel pump relay (Figure 2).
