Pacifica V6-3.8L VIN L (2005)
9.

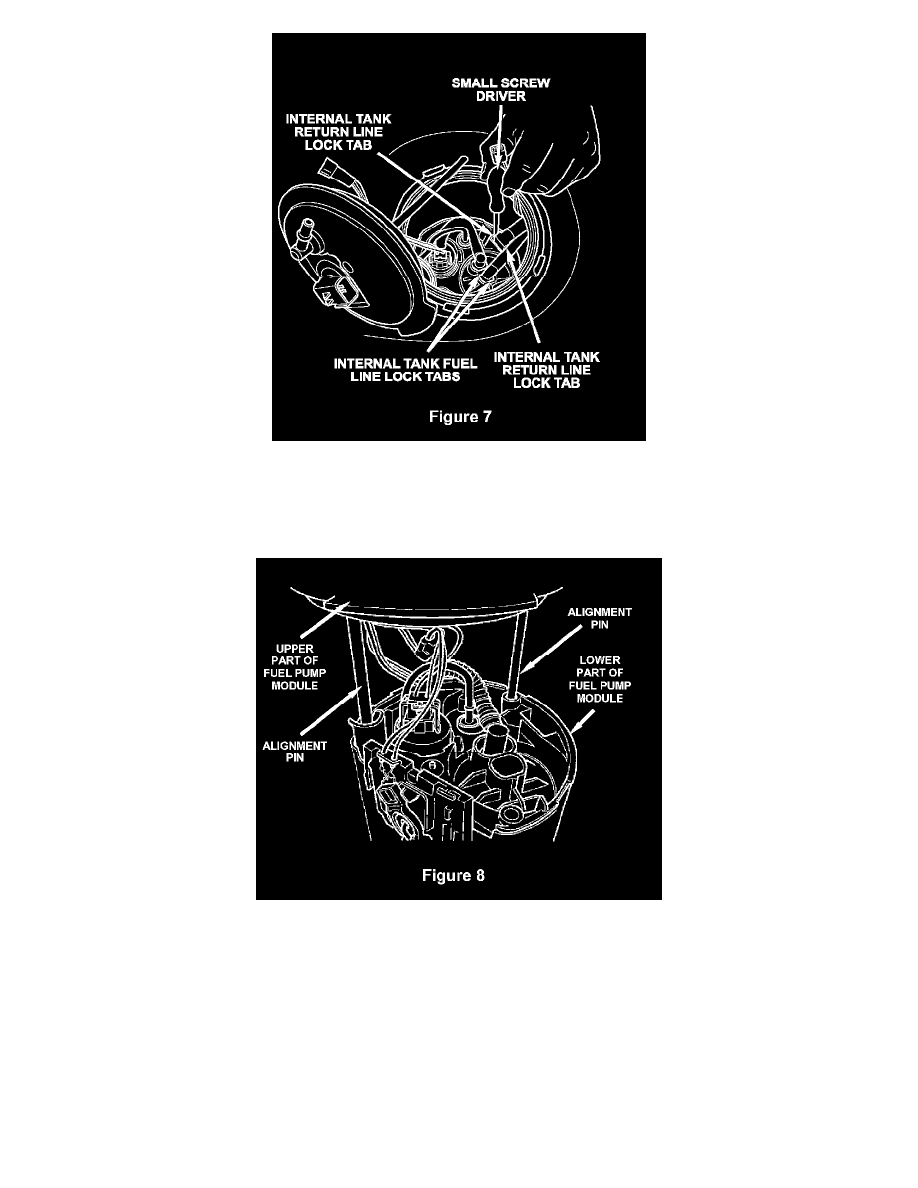

Remove the internal tank return fuel line from pump module. Use a small screwdriver to pry the lock tab back and tilt the hose to one side. Pry the
lock tab back on other side to release the hose (Figure 7).
CAUTION:
Care should be taken to not crack/break the locking tabs or supply line fitting.
10.
Remove the internal tank supply fuel line from top of the pump module. Use a small screwdriver to pry the lock tab back and tilt the hose to one
side. Pry the lock tab back on other side to release the hose (Figure 8).
11.
Tip the fuel pump module on its side to remove fuel from the reservoir.
12.
Remove and discard the fuel pump module assembly and gasket.
13.
Place the new fuel pump module gasket into position.
14.
Install the new fuel pump module assembly into the fuel tank.
15.
Connect the return fuel line first and then connect the supply fuel line to the new fuel pump module (Figure 7).
