Pacifica V6-3.8L VIN L (2005)
Powertrain Management
Sensors and Switches - Powertrain Management
Sensors and Switches - Fuel Delivery and Air Induction / Throttle Position Sensor / Locations
Page 2487
Page 2

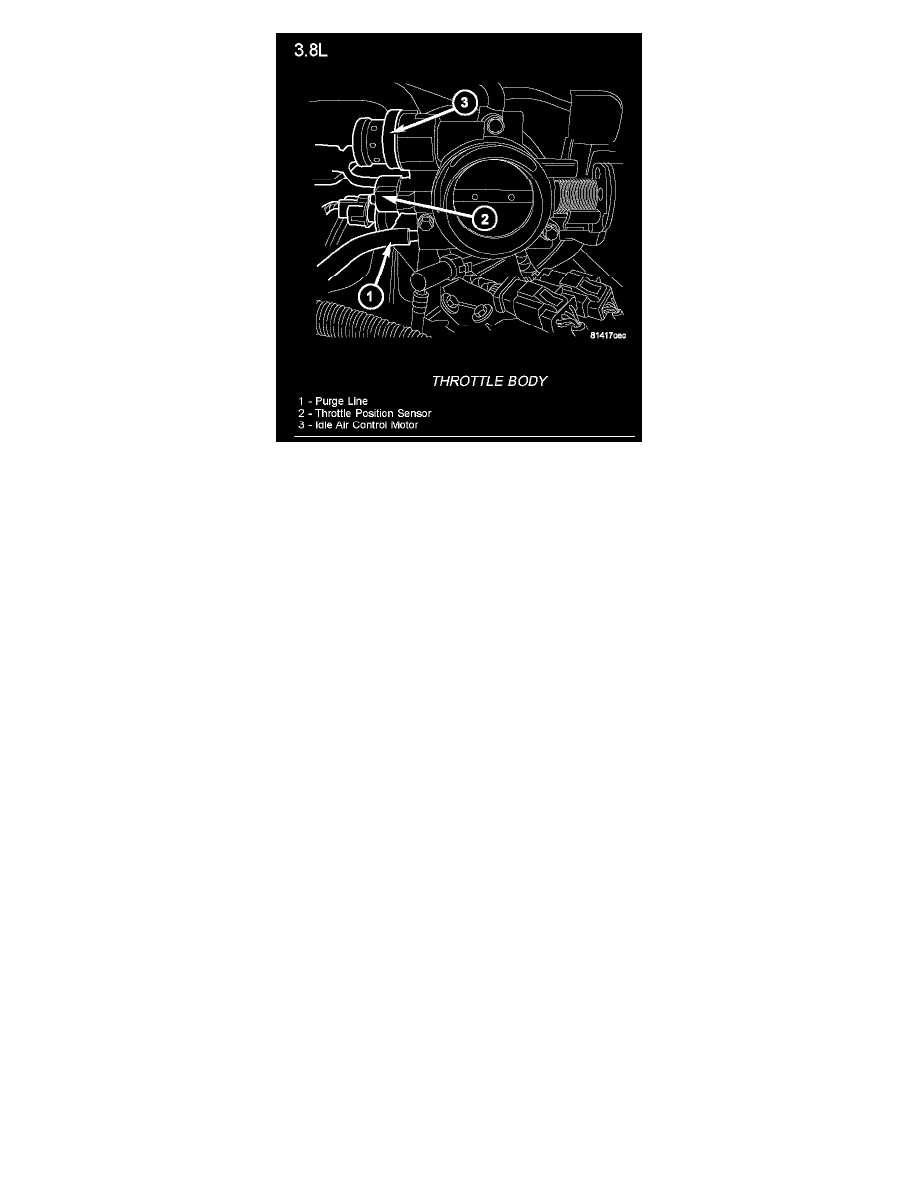

Throttle Body
3. Attach electrical connector to the TPS (2).
4. Connect the negative battery cable.
