Seat Heater Control Module|Description and Operation > < Seat Heater Control Module|Locations|Page 147

Pacifica V6-3.8L VIN L (2005)

Page 2
background image

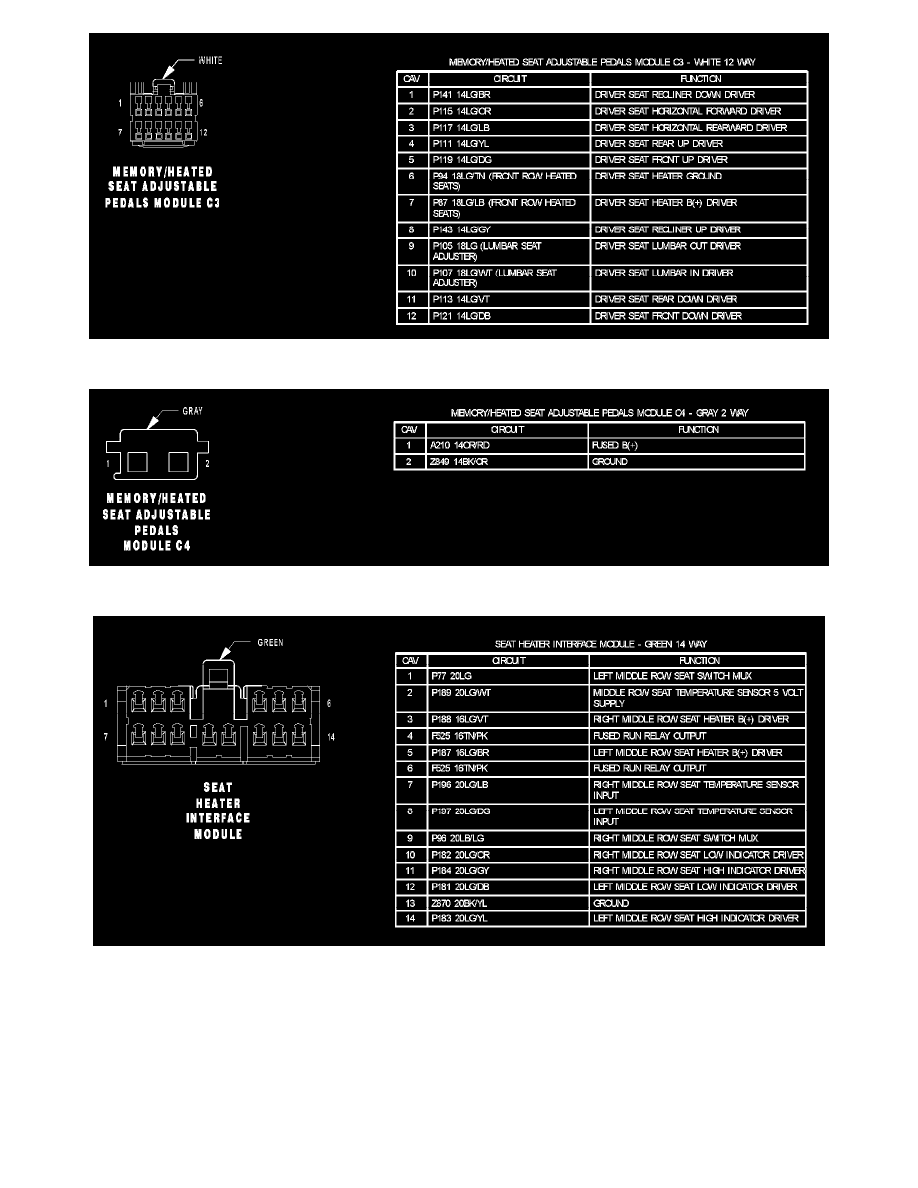

Memory/Heated Seat Adjustable Pedals Module C3

Memory/Heated Seat Adjustable Pedals Module C4

Seat Heater Interface Module
