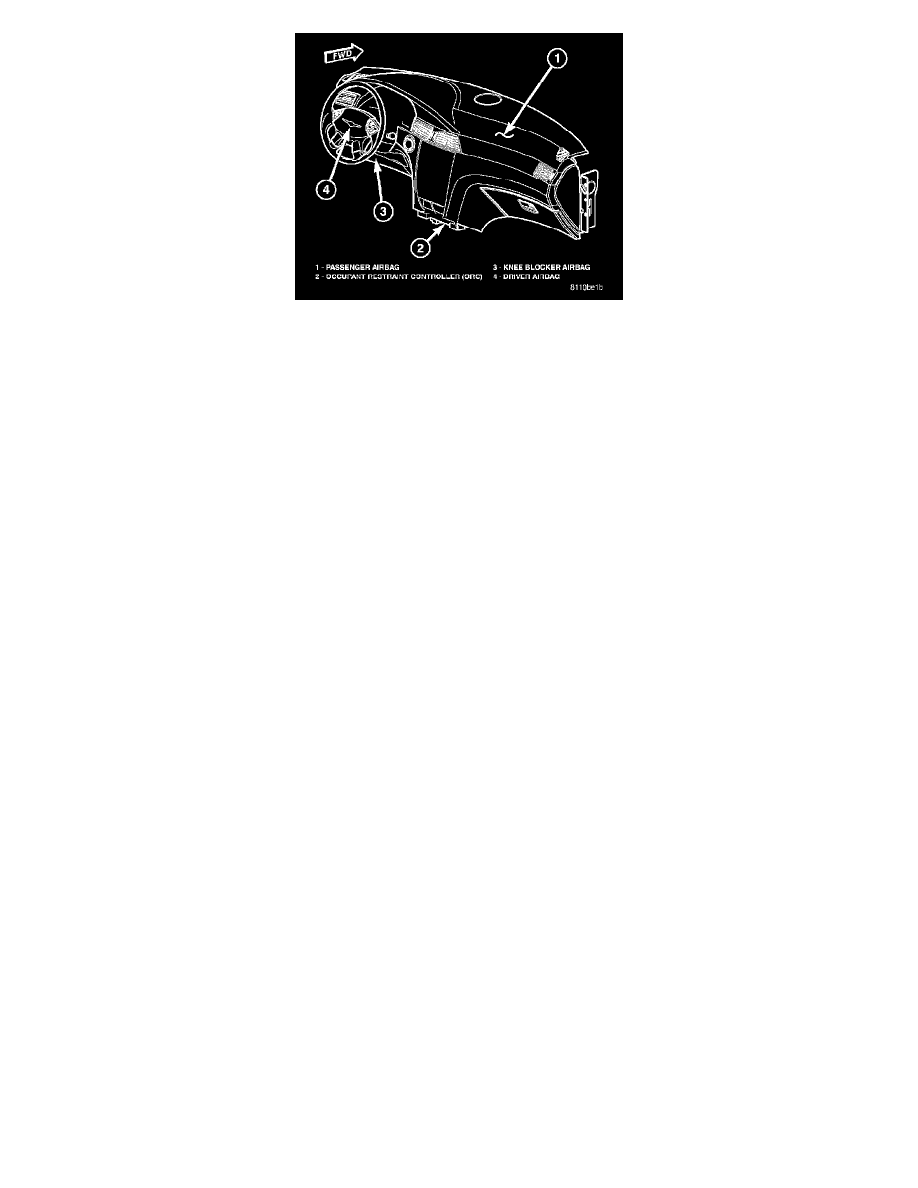

Air Bag Control Module: Connector Locations

Instrument Panel Harness

Restraint Systems
Relays and Modules - Restraint Systems / Air Bag Control Module / Component Locations
