Pacifica V6-3.8L VIN L (2005)

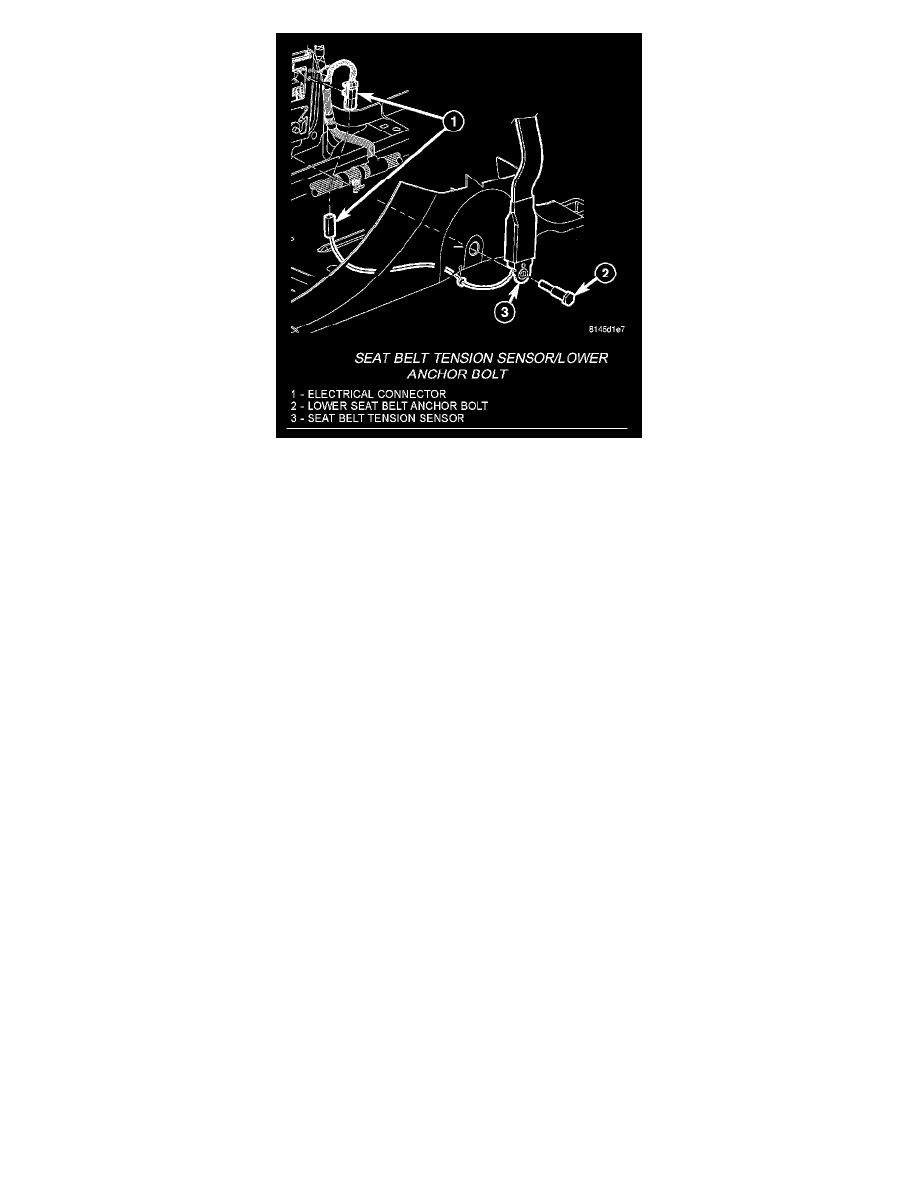

Seat Belt Tension Sensor/Lower Anchor Bolt
4. If equipped with Occupant Classification System (OCS), there will be a harness pigtail attached to the lower anchor bolt. Take care not to damage
this while removing the lower B-pillar trim.
5. Remove the lower B-pillar trim.
6. Disconnect the retractor electrical connector.
7. Remove the two B-pillar seat belt retaining ring mounting screws and then retaining ring from seat belt webbing.
8. Remove the two seat belt retractor mounting bolts.
9. Grasp the height adjuster knob cover and gently pull inward, separating it from the seat belt height adjuster.
10. Remove the turning loop retaining bolt from the seat belt height adjuster.
11. Remove seat belt and retractor from vehicle.
INSTALLATION
1. Position seat belt and retractor in vehicle.
2. Install the turning loop retaining bolt in the seat belt height adjuster. Torque bolt to 40 N.m (30 ft. lbs.) and install seat belt turning loop cover.
3. Position the height adjuster knob cover onto the height adjuster knob and firmly snap into place.
4. Install the two seat belt retractor mounting bolts. Torque bolts to 40 N.m (30 ft. lbs.).
5. Slip the B-pillar seat belt retaining ring onto the seat belt webbing and then install the two B-pillar seat belt retaining ring mounting screws.
6. Connect the retractor electrical connector.
7. If equipped with Occupant Classification System (OCS), connect the harness connector to the belt tension sensor prior to installing the B-pillar
trim.
8. Install the lower B-pillar trim.
9. Install the lower seat belt anchor bolt and lower seat belt anchor bolt cover through lower B-pillar. Torque bolt to 40 N.m (30 ft. lbs.).
WARNING: DO NOT CONNECT THE BATTERY NEGATIVE CABLE. FIRST. FAILURE TO DO SO COULD RESULT IN
OCCUPANT PERSONAL INJURY OR DEATH.
10. Verify vehicle and system operation.
11. Close hood.
