Pacifica V6-3.8L VIN L (2005)
Sunroof / Moonroof Switch: Service and Repair
REMOVAL
1. Disconnect and isolate the battery negative cable.

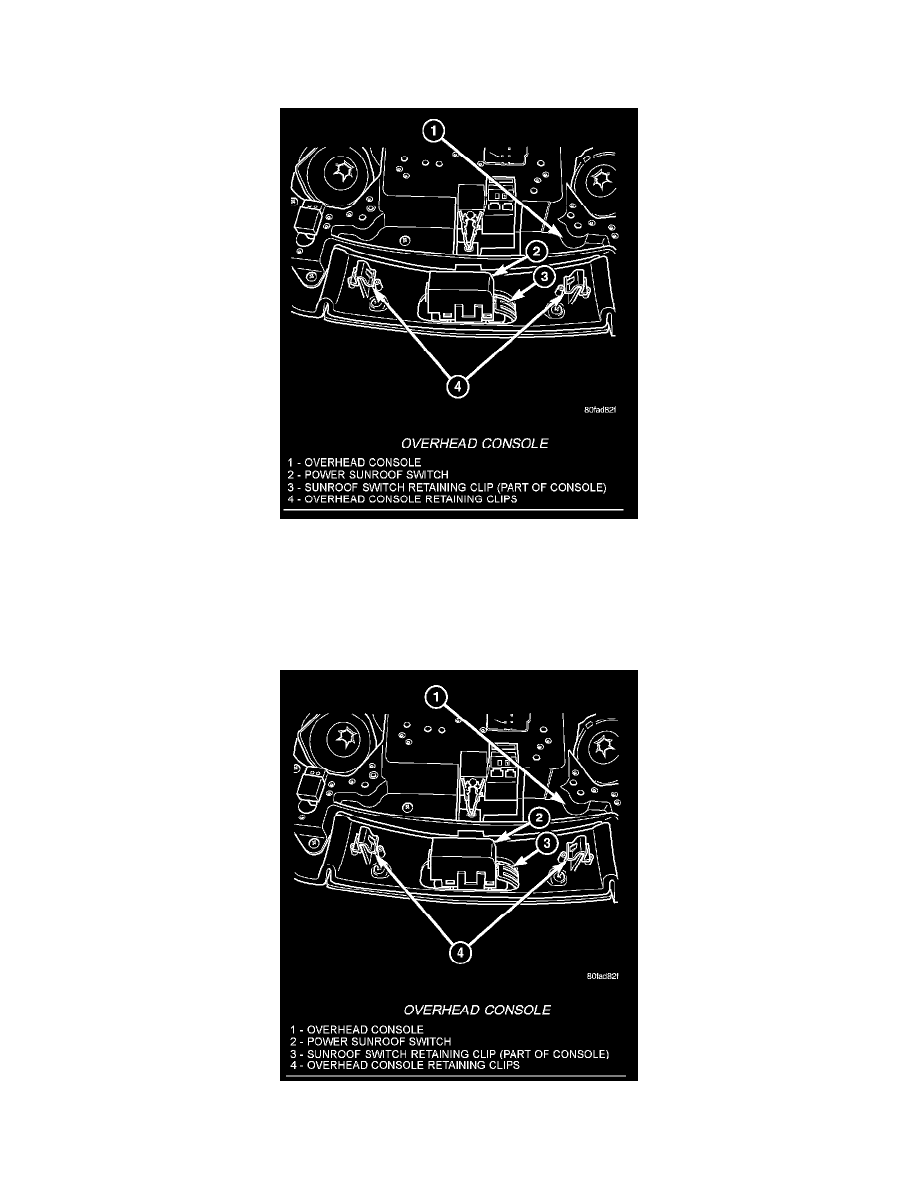

Overhead Console
2. Separate the overhead console from the headliner, by carefully pulling down on the front portion, toward the windshield, to release the retaining
clips.
3. Release the sunroof switch retaining tab, disconnect the electrical connector and remove the switch from the overhead console.
INSTALLATION
Overhead Console
1. Position the sunroof switch against the overhead console and push the switch to properly seat in retaining clip.
