Pacifica V6-3.8L VIN L (2005)

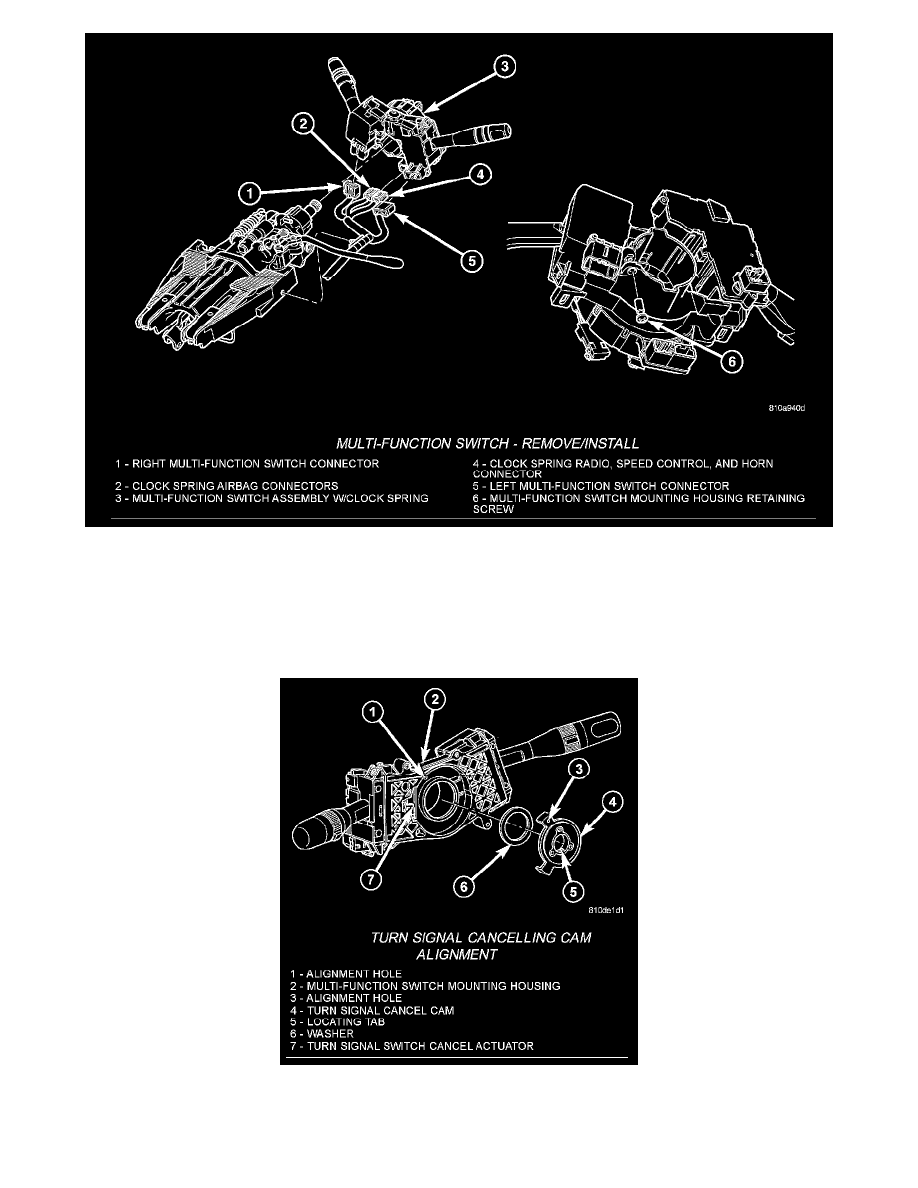

Multi-function Switch - Remove/Install
6. Remove the multi-function switch mounting housing.
INSTALLATION
NOTE: Before starting this procedure, be certain that the front wheels are still in the straight-ahead position.
Turn Signal Cancelling Cam Alignment
1. Rotate the turn signal cancel cam in the multifunction switch housing until the alignment hole in the one cam lobe is aligned with the alignment
hole in the back of the housing. The oblong hole in the hub of the cam should now be at the top, and the locating tab in the hub of the cam should
