Pacifica V6-3.8L VIN L (2005)
Battery Temperature Sensor: Service and Repair
REMOVAL
1. Disconnect and isolate the battery negative cable then the positive cable.
2. Remove battery from battery tray.

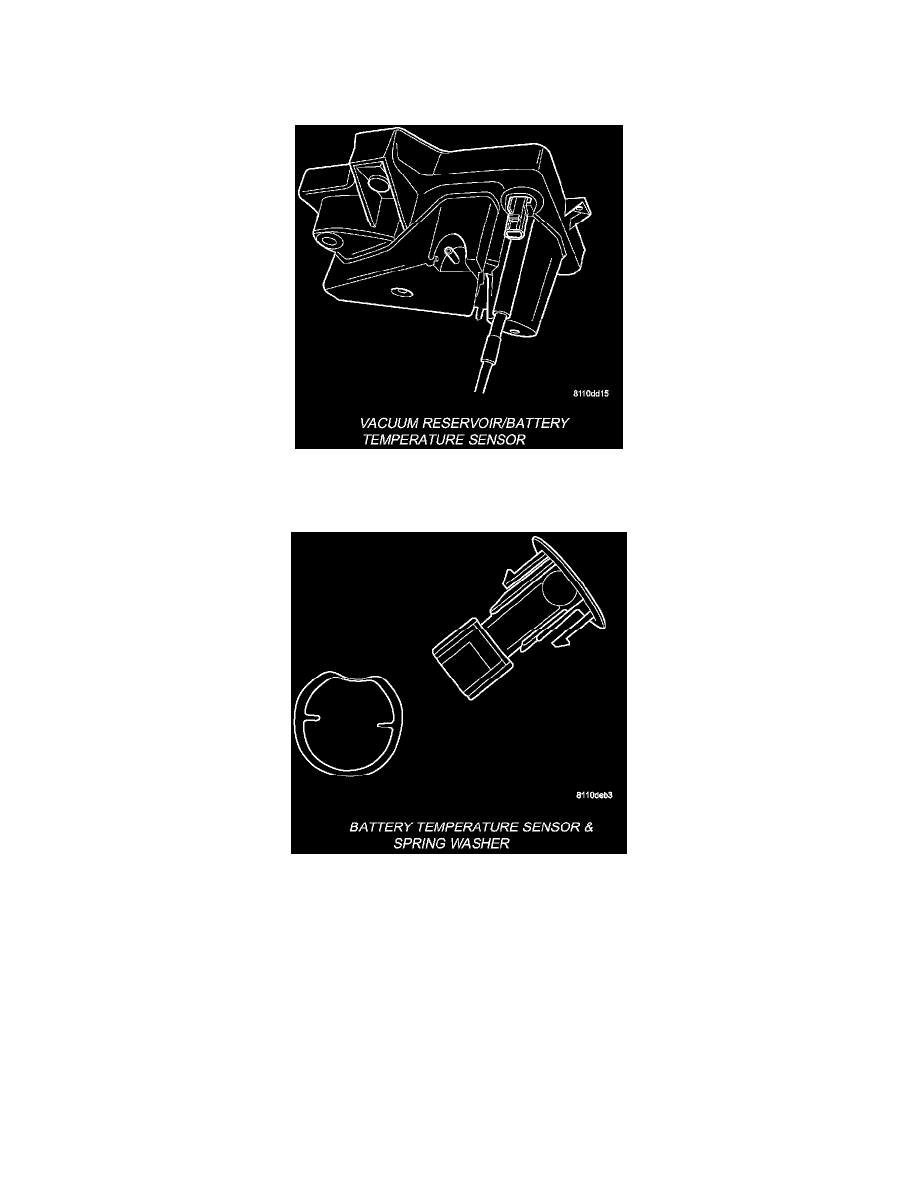

Vacuum Reservoir/Battery Temperature Sensor
3. Disconnect the Battery Temperature Sensor electrical connector.
Battery Temperature Sensor And Spring Washer
4. Unsnap the Battery Temperature Sensor from the battery tray and remove the sensor by pushing in the snap fits and pushing up out of tray.
INSTALLATION
